Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "INPUT SPEED SENSOR" parameter on the scantool
4. Driving at speed of over 19 Mile/h (30 Km/h)

Specification : Increasing Gradually

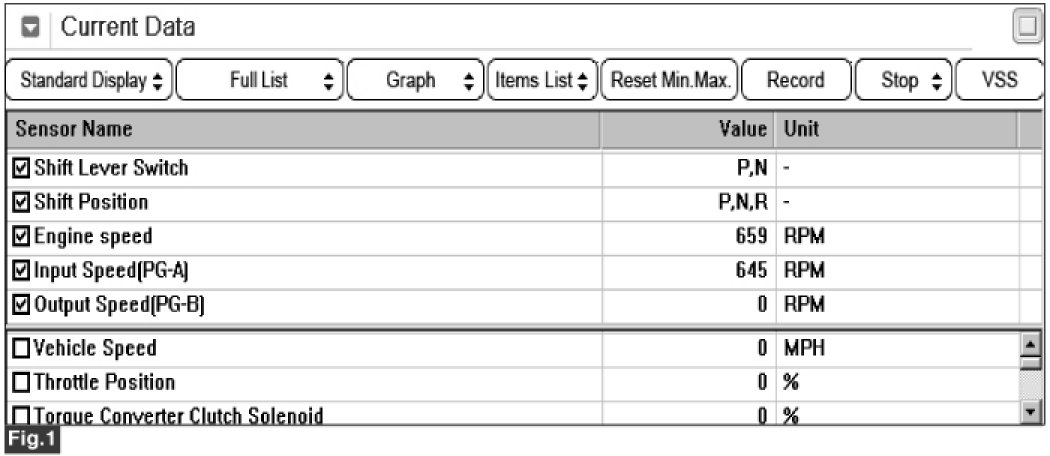

Fig 1) P,N

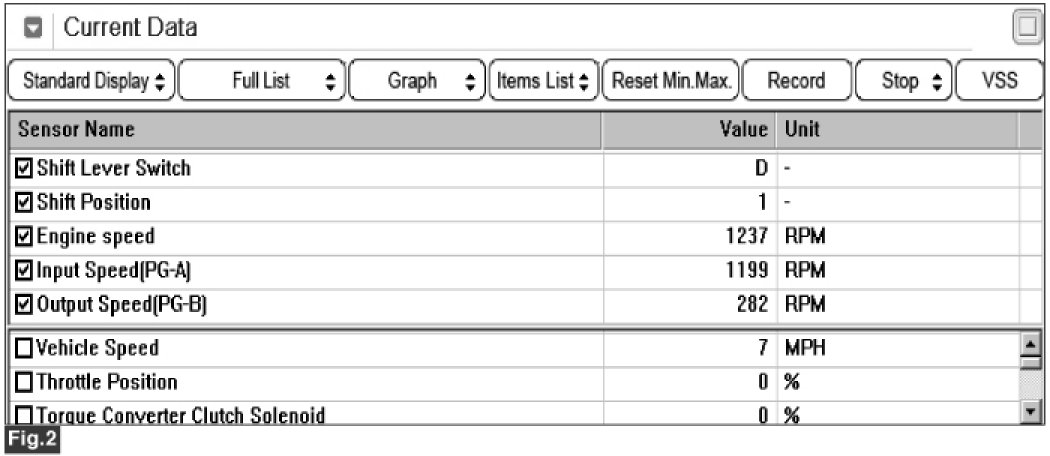

Fig 2) "D 1st" gear

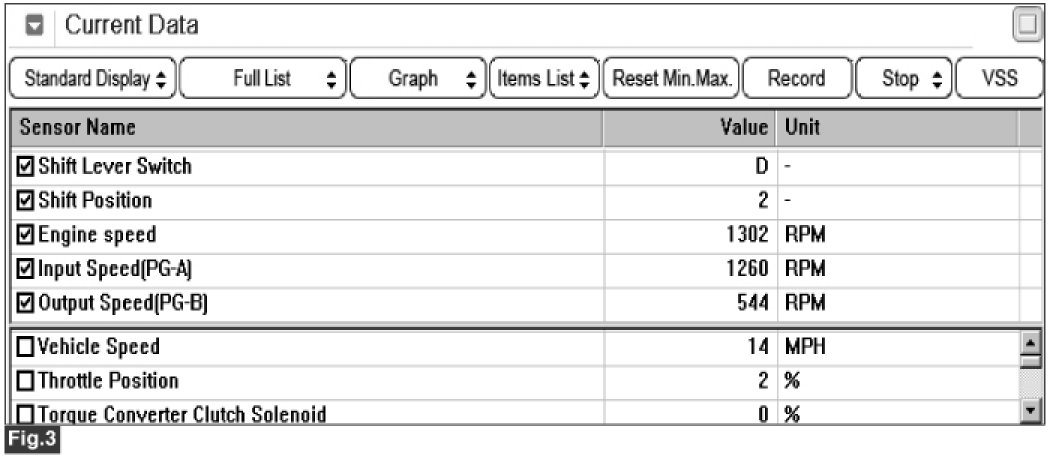

Fig 3) "2nd" gear
Fig 4) "3rd" gear

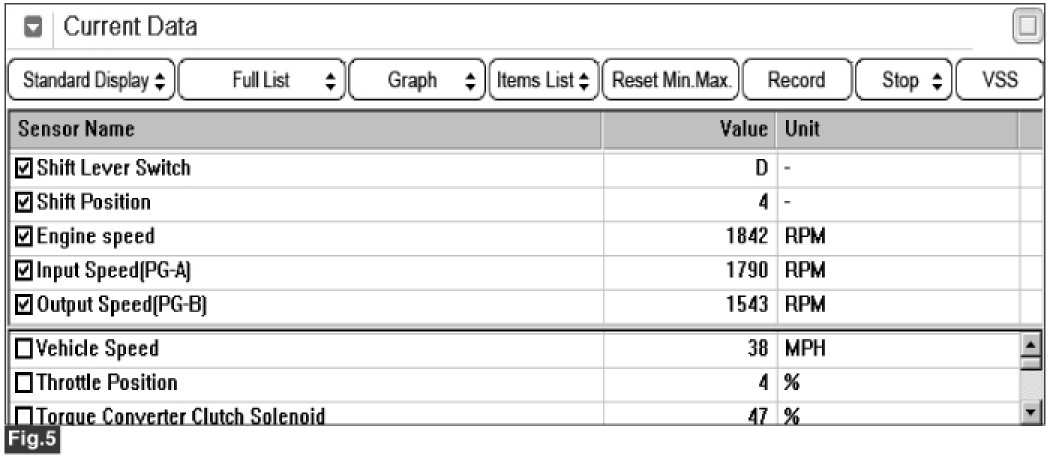

Fig 5) "4th" gear

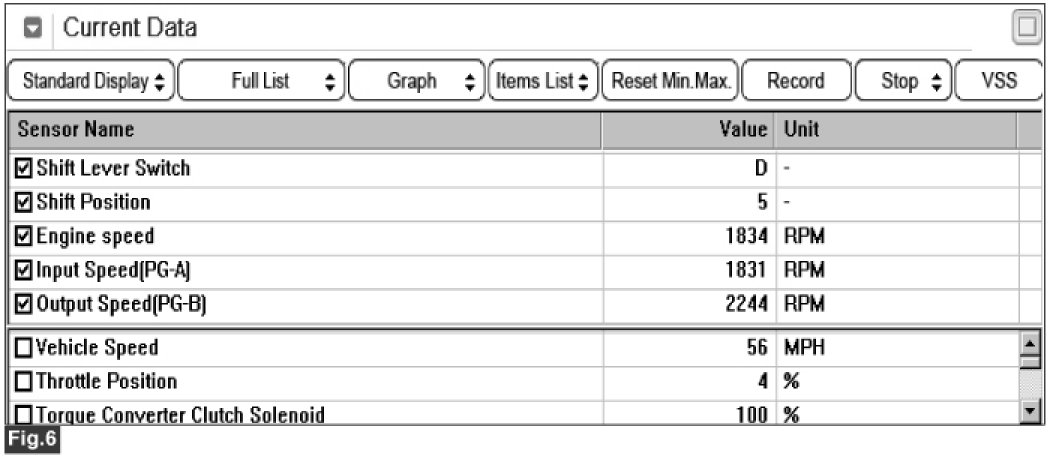

Fig 6) "5th" gear
5. Does "Input Speed Sensor" follow the referance data?
