General Information

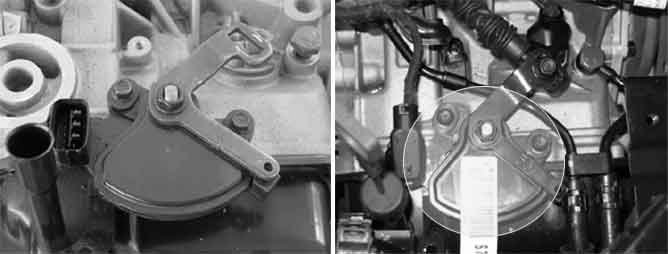

Component Location





General Description

The Transaxle Range Switch sends the shift lever position information to the TCM (PCM) using a 12V (battery voltage) signal. When the shift lever is in the D (Drive) position the output signal of Tansaxle Range Switch is 12V and in all other positions the voltage is 0V. The TCM (PCM) judges the shift lever position by reading all signals, for the Transaxle Range Switch, simultaneously.

DTC Description

The TCM (PCM) sets this code when the Transaxle Range Switch has no output signal for more than 30 seconds.

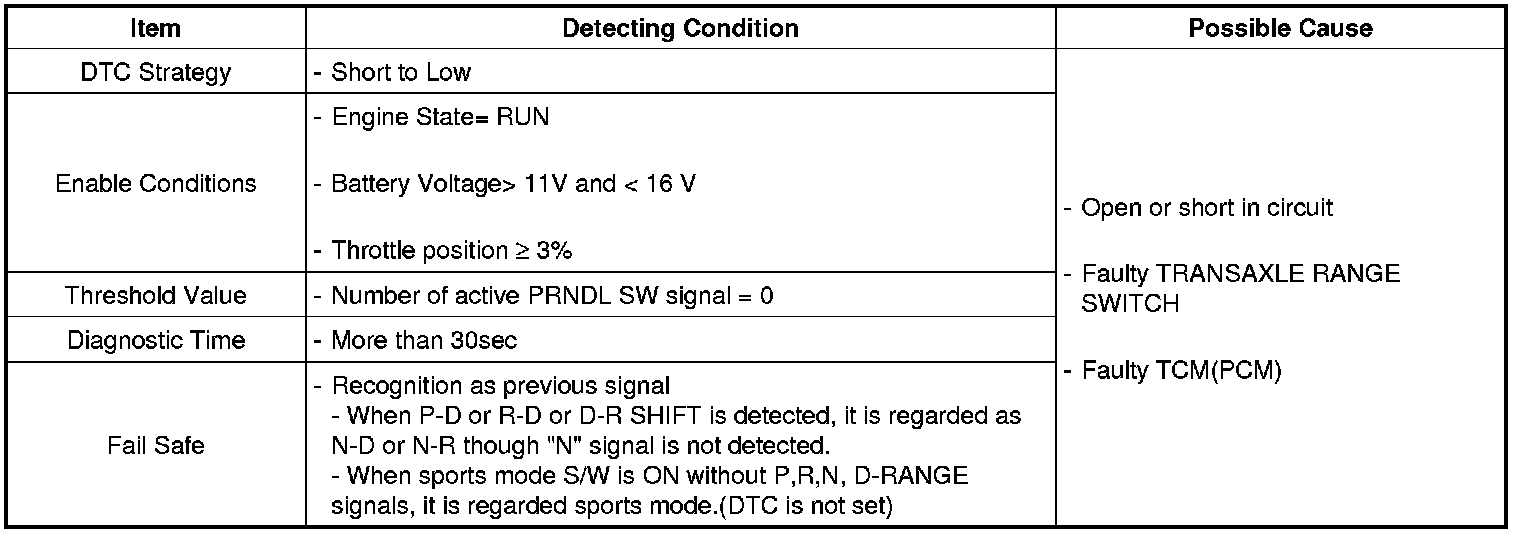

DTC Detecting Condition

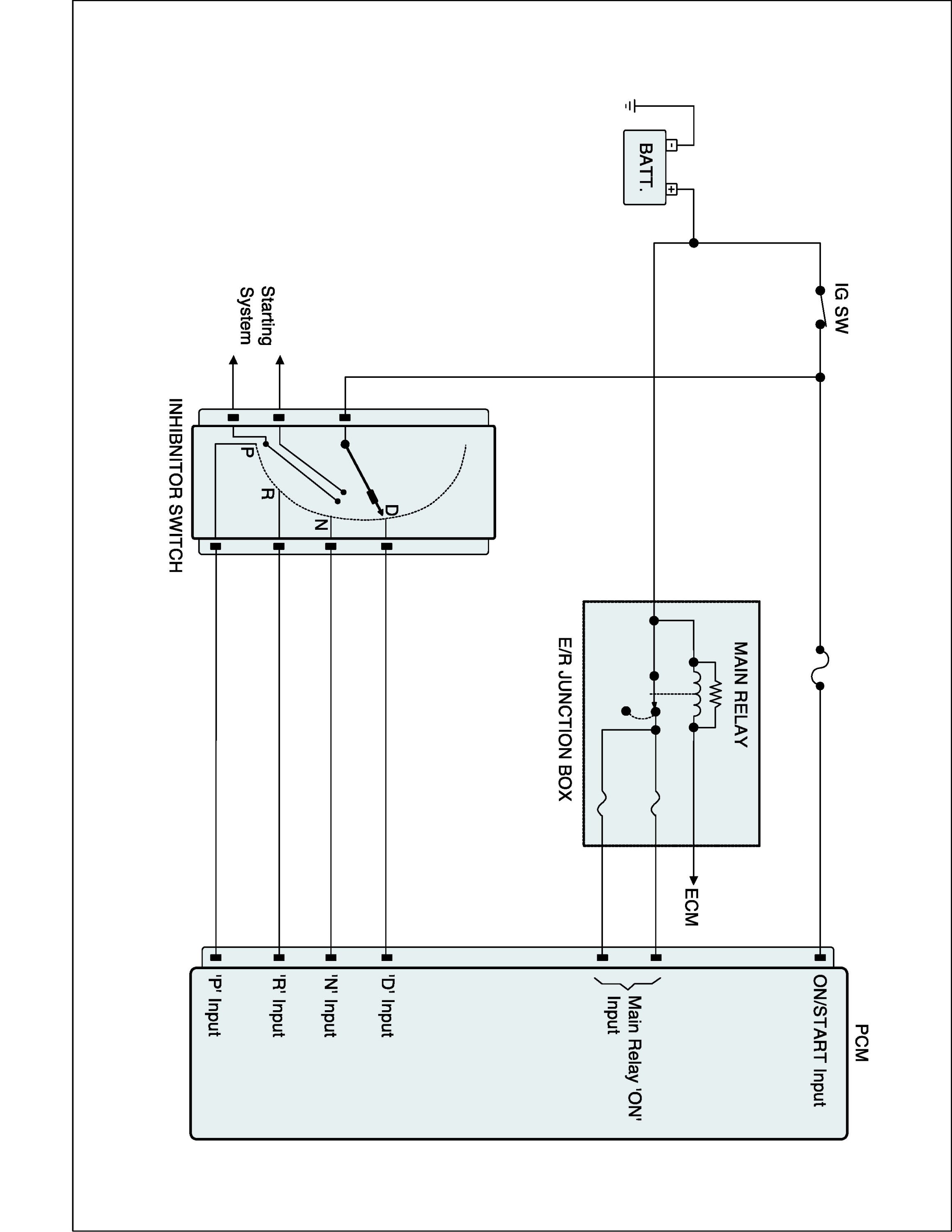

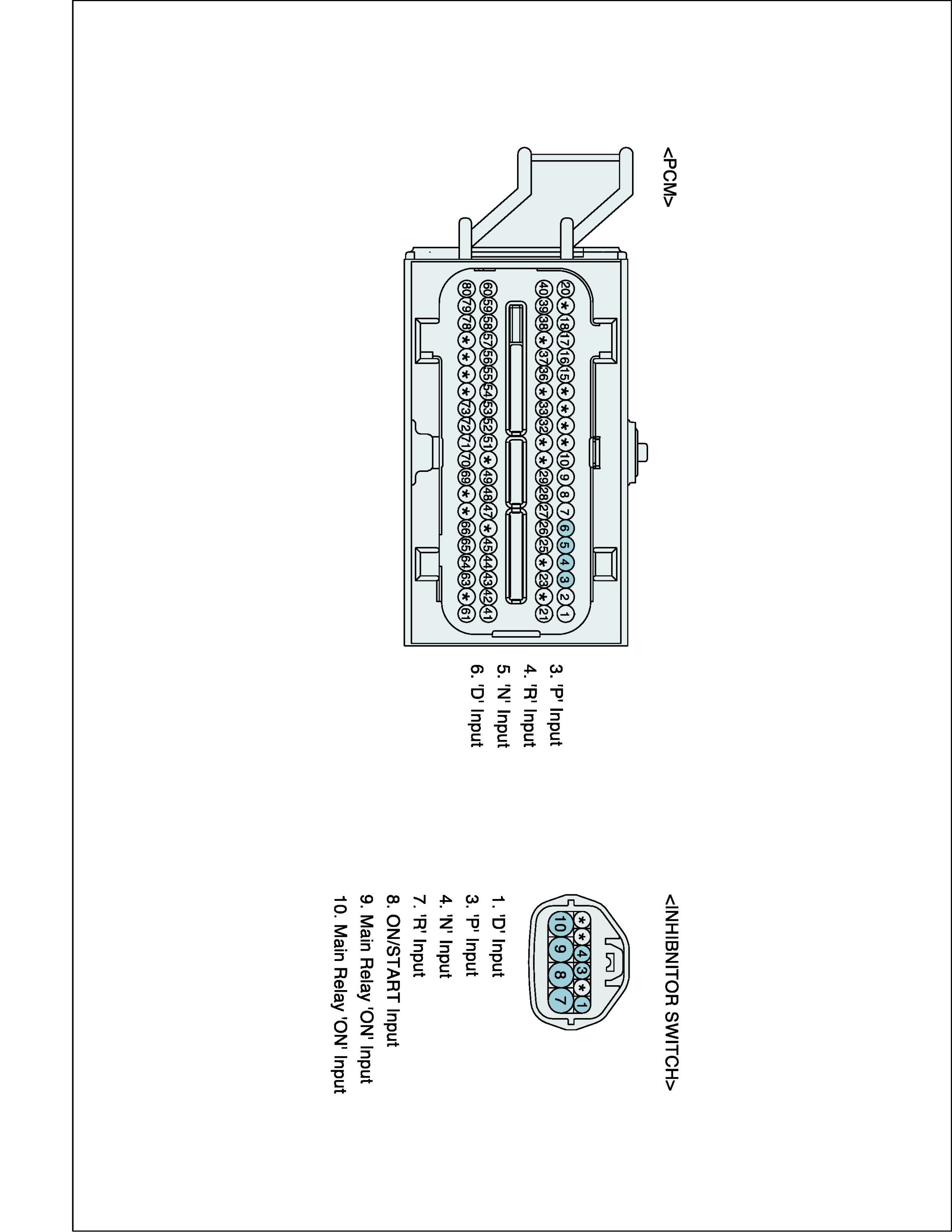

Diagnostic Circuit Diagram

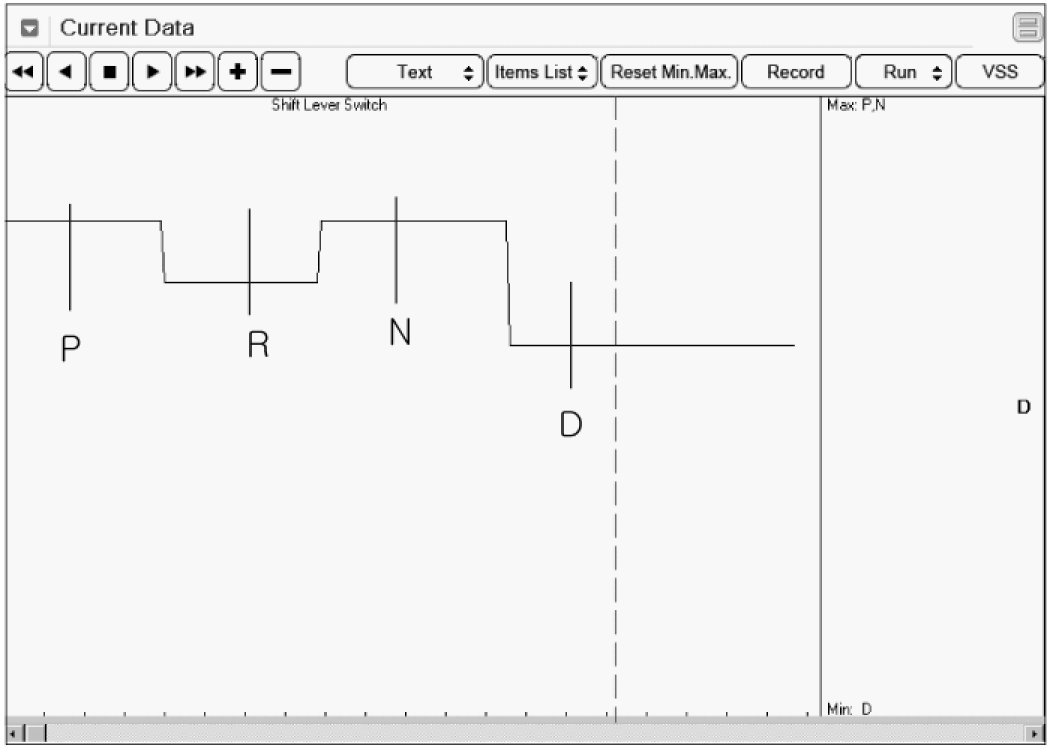

Signal Waveform & Data
