General Information

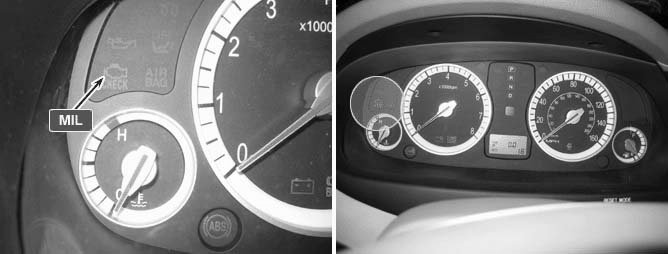

Component Location





General Description

The Malfunction Indicator Lamp (MIL), which is located in the instrument cluster, comes on to notify the driver that there may be a problem with the vehicle and that service is needed. Immediately after the ignition switch turns on, the malfunction indicator lamp is lit to indicate that the MIL operates normally and goes off after starting

DTC Description

Checking input signal of engine check lamp every 10 sec. under detecting condition, if open, short to battery or ground is detected, ECM sets P0650.

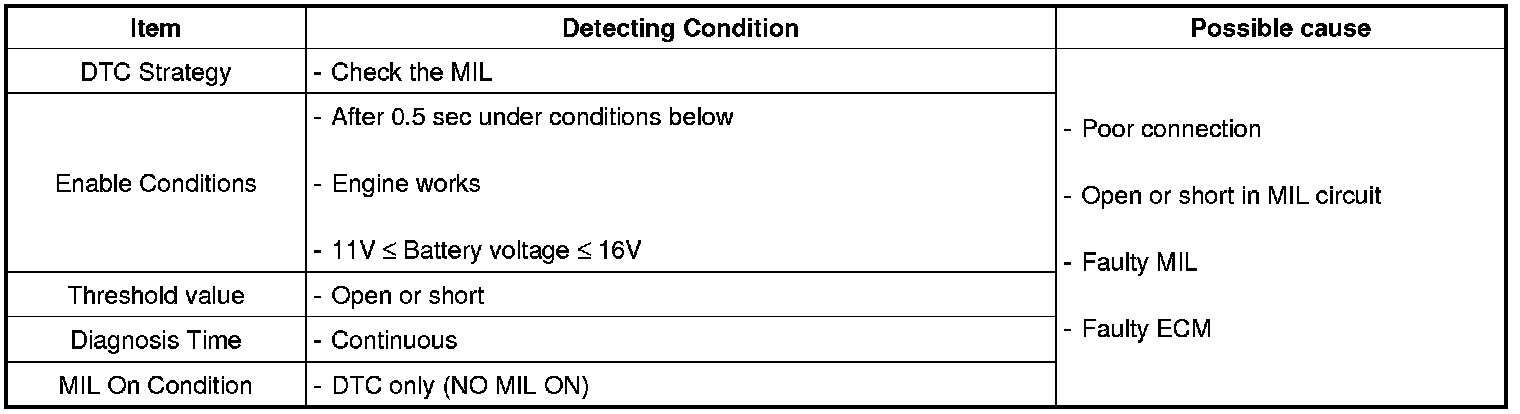

DTC Detecting Condition

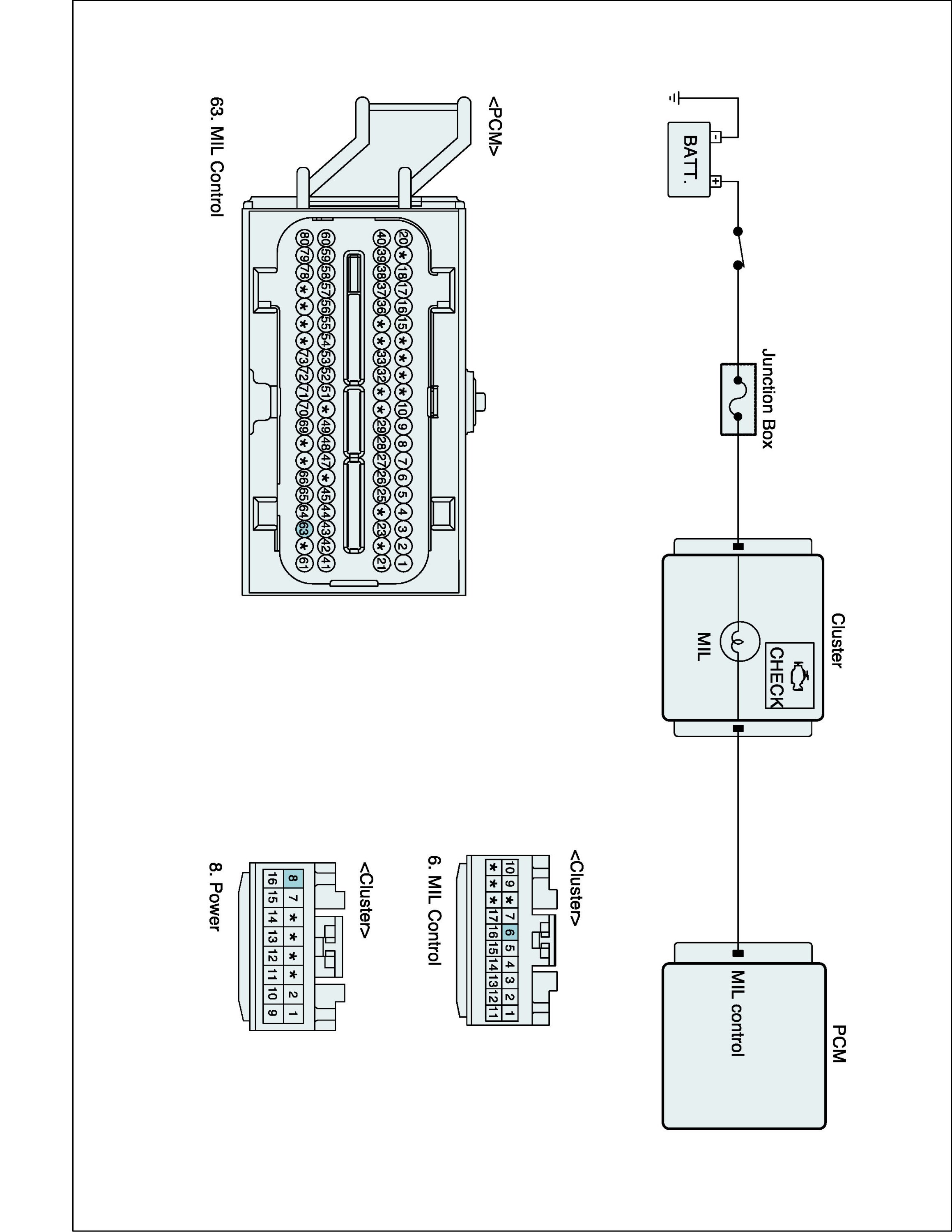

Diagnostic Circuit Diagram
