General Information

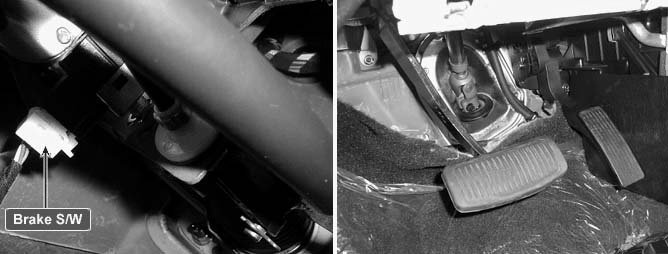

Component Location





General Description

The Stop lamp switch is used to judge whether the acceleration system is abnormal or not. The stop lamp switch has a duplex system (signals brake test or brake light) to memorize the abnormality when the signals of depressing and releasing the brake pedal are detected simultaneously.

DTC Description

Checking input signals from stop lamp switch under detecting condition, if the operation state of stop lamp switch does not change for more than 3 sec., ECM sets P0571. MIL (Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.

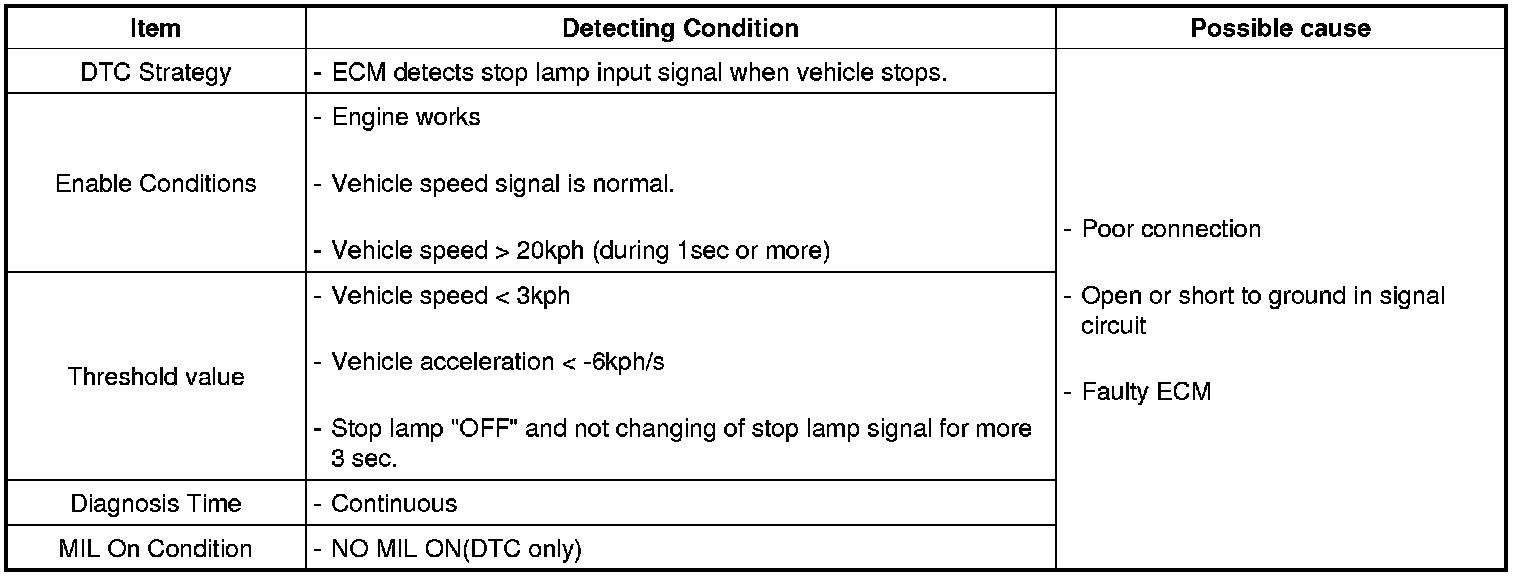

DTC Detecting Condition





Diagnostic Circuit Diagram





Signal Waveform & Data

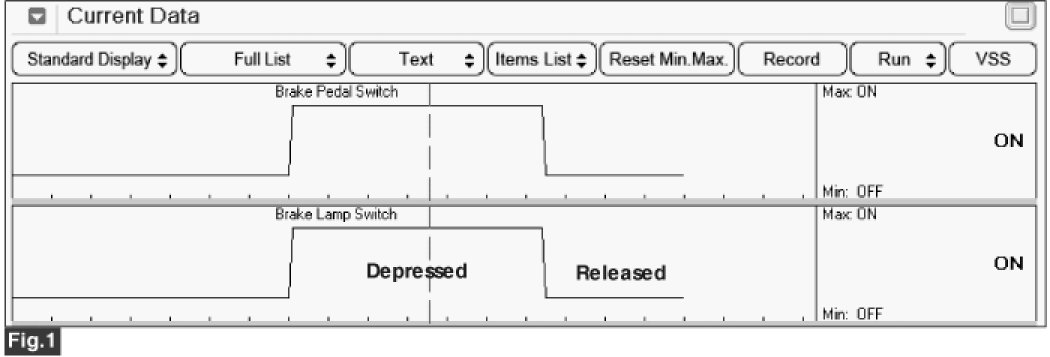

Fig.1) Normal data of Brake Switch during brake pedal released after depressed.
