General Information

Component Location





General Description

The cruise control system keeps the vehicle running at a fixed speed until a signal canceling this fixed speed is received. When the main switch is turned on with vehicle in the running mode, the battery voltage is applied to the ECM. When a signal from the control switch is input to the ECM while the vehicle is in state,the ECM controls the ETS motor to make a car go at a steady speed you want. Also, while the system is operating, "CRUISE" indicator lamp in the meter assembly lights up.

DTC Description

If the SET switch signal is switching too frequently or stuck for too long, ECM sets P0568.

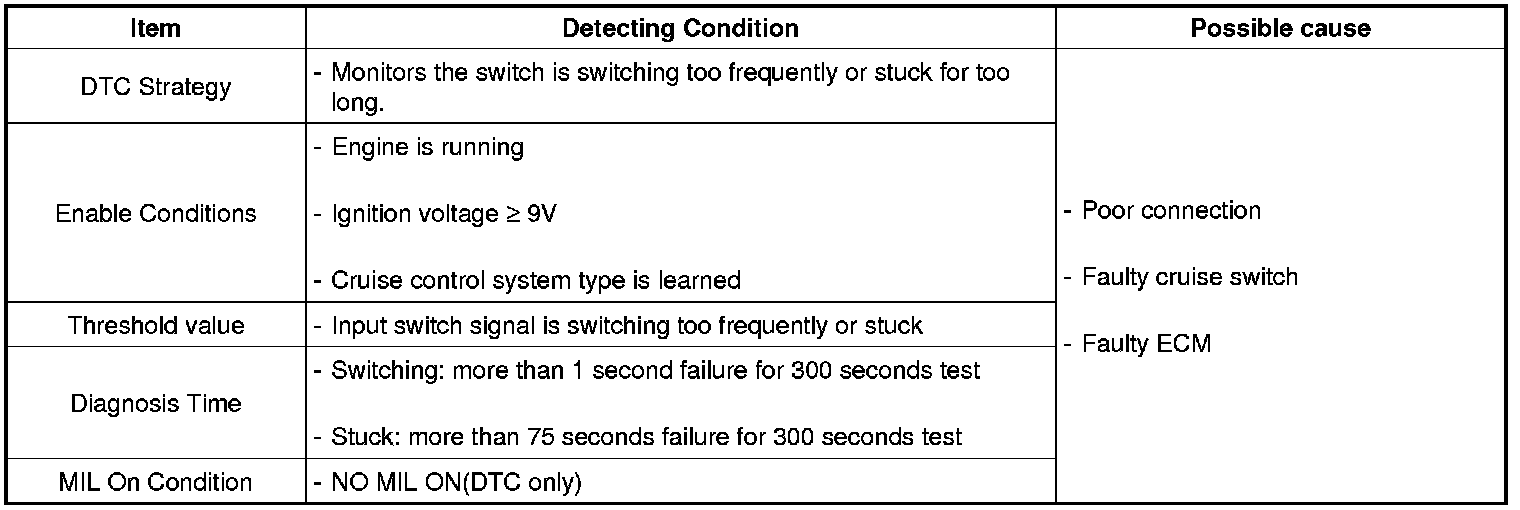

DTC Detecting Condition

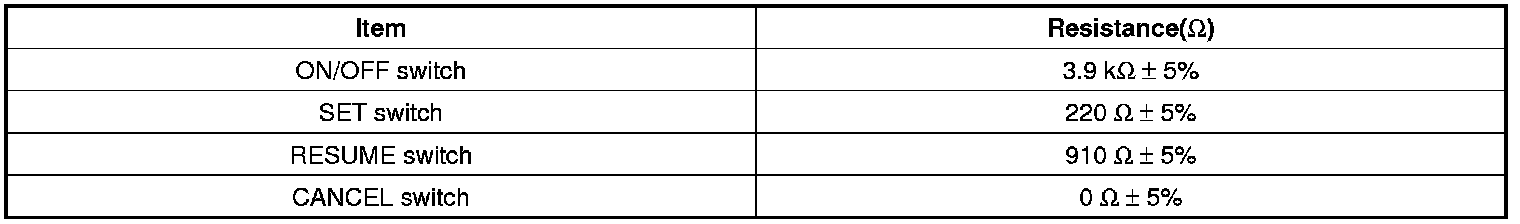

Specification





Diagnostic Circuit Diagram
