Component Inspection

Component Inspection

Check auto cruise switch
1. IG "OFF" and disconnect Cruise switch connector.
2. Measure resistance between signal and ground terminals of Cruise switch connector with 'RESUME' switch depressed. (Component side)
Specification :

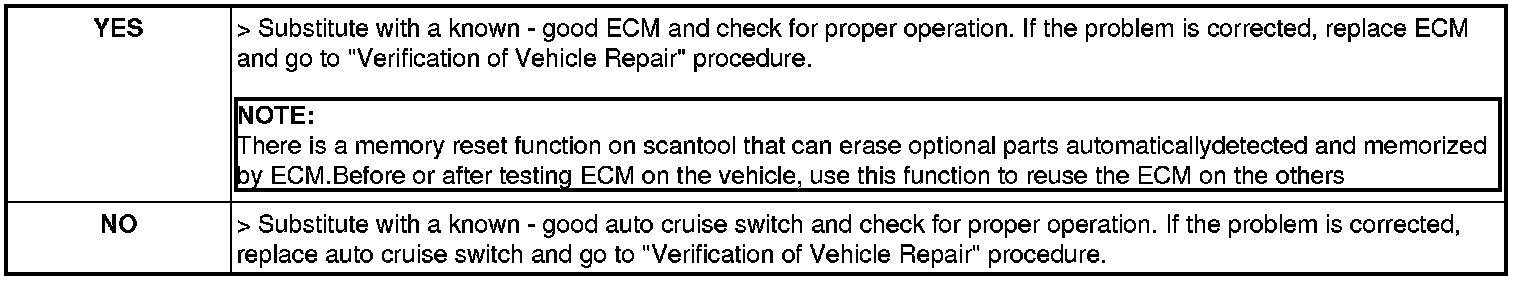

3. Is the measured resistance within specification?
