Component Inspection





Component Inspection

Check auto cruise switch
1. IG "OFF" and disconnect Cruise switch connector.
2. Measure resistance between signal and ground terminals of Cruise remocon connector with 'CANCEL' switch depressed. (Component side)
Specification :

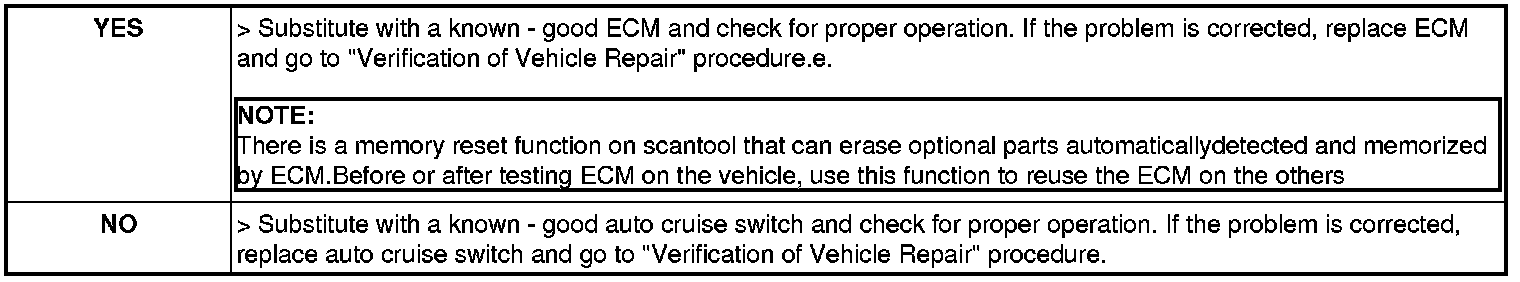

3. Is the measured resistance within specification?
