Component Inspection

Component Inspection

Check A/C pressure sensor
1. IG "OFF" and connect the scantool.
2. Connect the probe to A/C pressure sensor signal and select the oscilloscope in the menu.
3. Check the waveform with turning on and off a/c switch after engine start.
Specification :

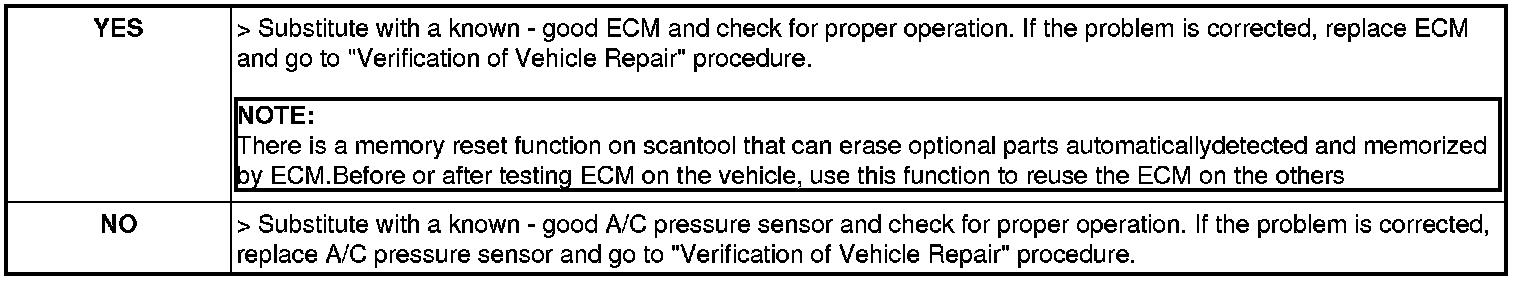

4. Is the measured waveform of A/C pressure sensor normal?
