Component Inspection

Component Inspection

Check Ignition Coil
1. IG "OFF" and disconnect ignition coil connector.

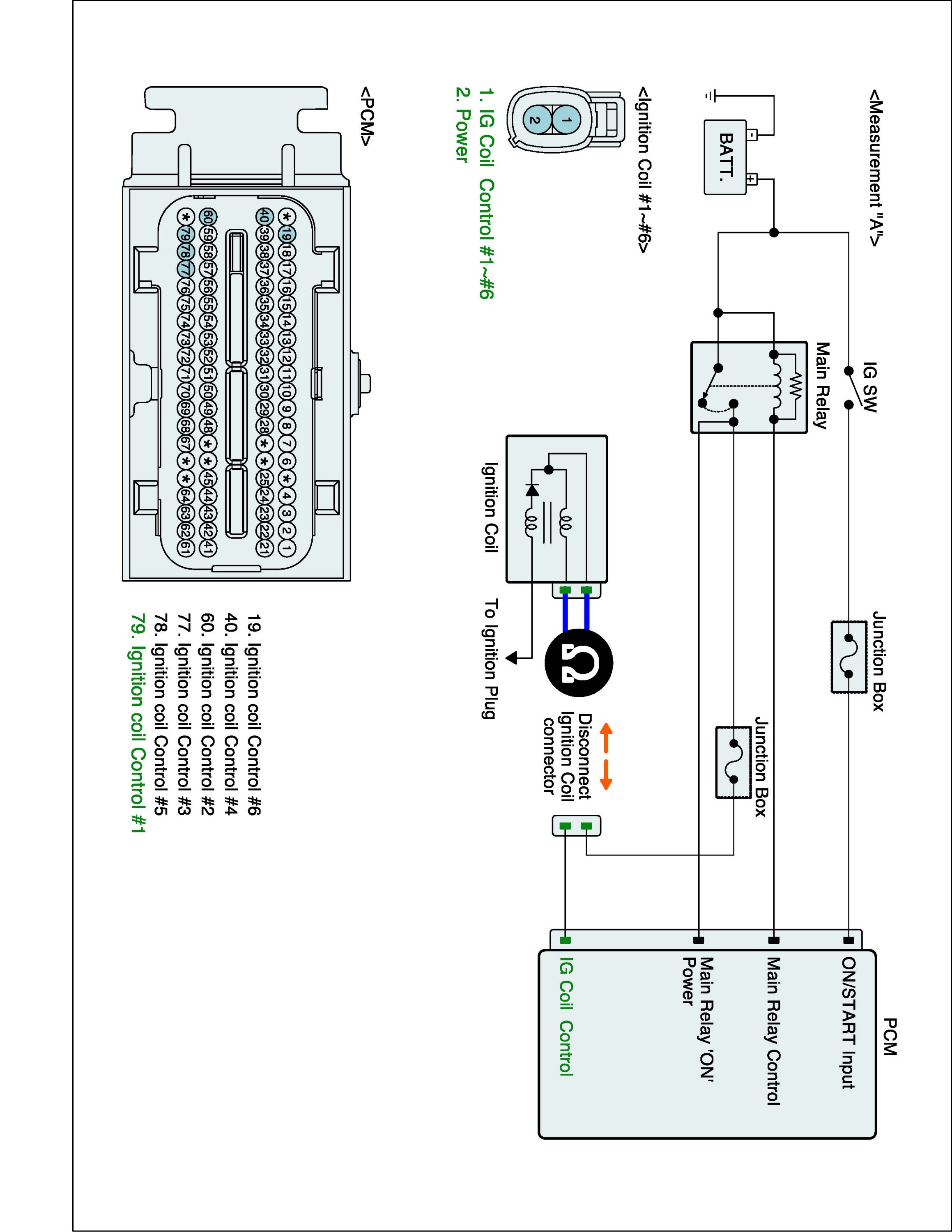

2. Measure resistance between power and signal terminals of ignition coil connector. (Measurement "A")
3. Measure resistance between power terminal of ignition coil connector and out terminal of secondary ignition coil. (Measurement "B")
Specification :

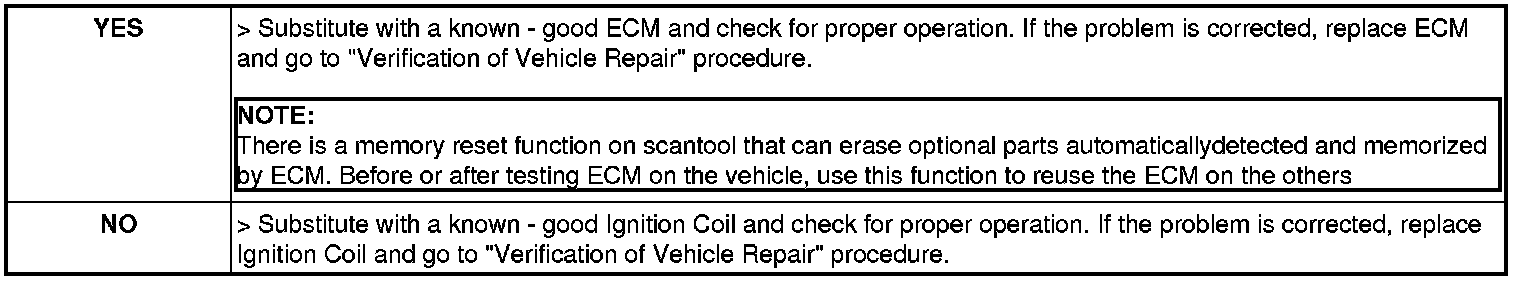

4. Is the measured resistance within specification?
