System Inspection





System Inspection

Check intake system/vapor hoses for air leakage or disconnection
1. Visually/physically inspect the following items:
- Intake system for air leakage
- Vapor hoses for cracks or disconnection

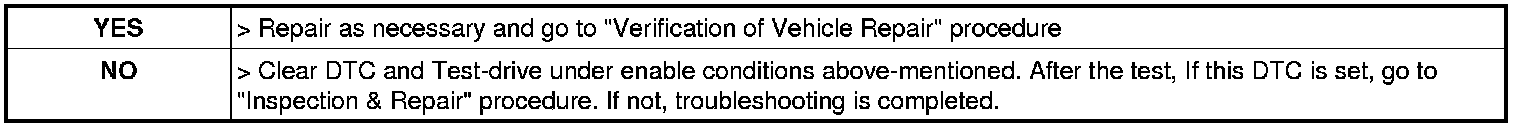

2. Has a problem been found in any of the above areas?
