General Information

Component Location





General Description

The evaporative emission control system prevents hydrocarbon (HC) vapors from the fuel tank from escaping into the atmosphere where they could form photochemical smog. Gasoline vapors are collected in the charcoal canister. The ECM controls the Purge Control Solenoid Valve (PCSV) to purge any collected vapors from the canister back to the engine for combustion. This valve is actuated by the purge control signal from the ECM and controls fuel vapor from the canister to the intake manifold.

DTC Description

Checking output signals from PCSV every 10 sec. under detecting condition, if signals indicating short to battery in the circuit are detected for more than 5 sec., ECM sets P0445. MIL (Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.

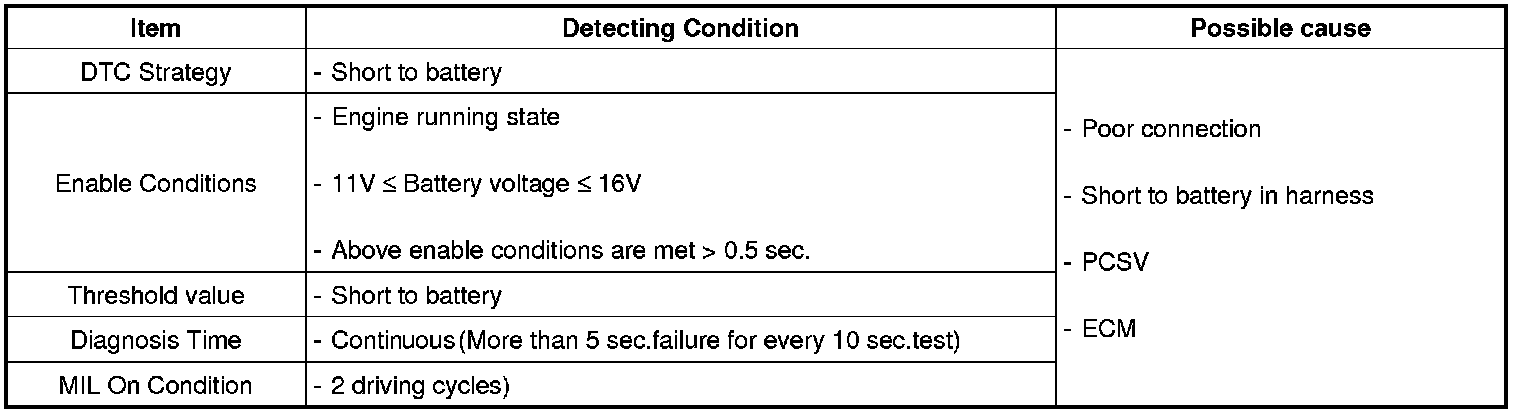

DTC Detecting Condition





Specification





Diagnostic Circuit Diagram





Signal Waveform & Data

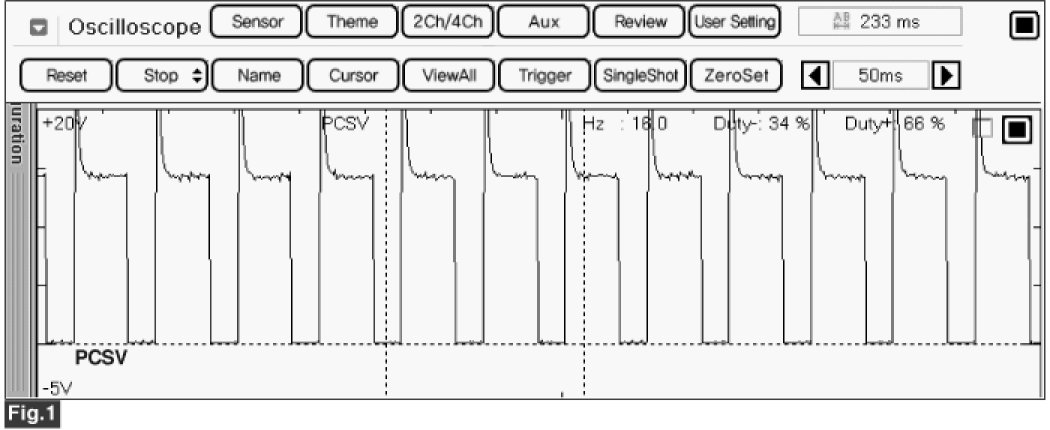

Fig.1) Normal waveform of PCSV under 34% control condition.

The Purge Control Solenoid Valve (PCSV) is open or closed by ECM and vacuum of intake manifold.
At opening, fuel vapor from canister enters into intake manifold. To prevent vacuum from forming inside canister, ECM controls to open it. This photo shows the signal waveform of PCSV operating normally.
