General Information

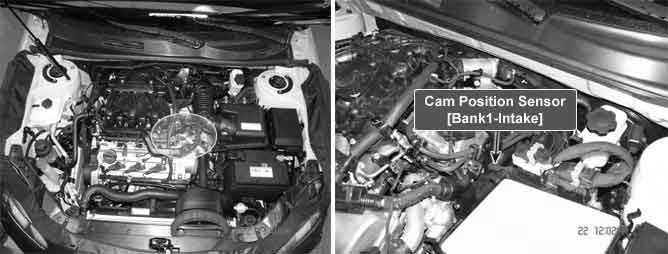

Component Location





General Description

The Camshaft Position Sensor (CMPS) is a sensor that detects the compression TDC of the NO. 1 cylinder. The CMPS consists of a hall type sensor and a target on the end of the intake camshaft. When the target triggers the sensor, the sensor voltage is 5V. If not, the sensor voltage is 0V. These CMPS signal is sent to the ECM and the ECM uses the CMPS signal for synchronizing the firing of sequential fuel injectors.

DTC Description

If ECM detects that cam event signal count is over 3 under detecting condition, ECM sets P0340. And MIL (Malfunction Indication Lamp) turns on.

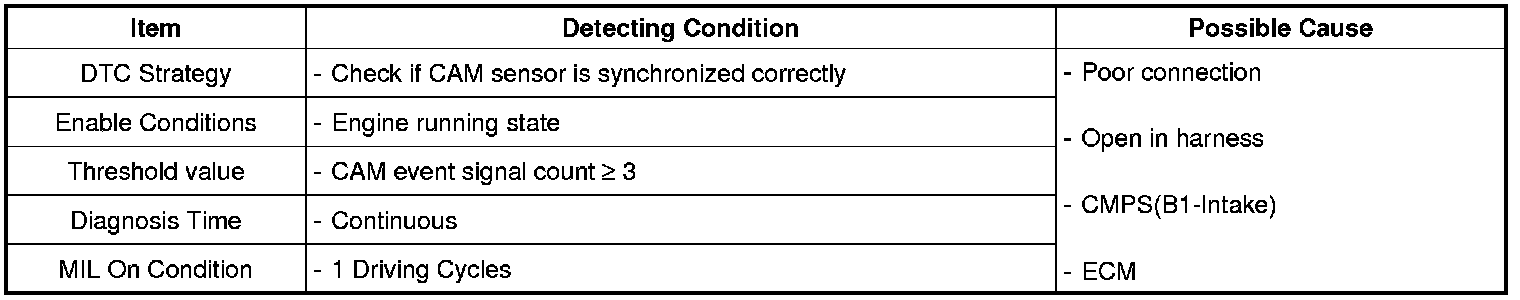

DTC Detecting Condition

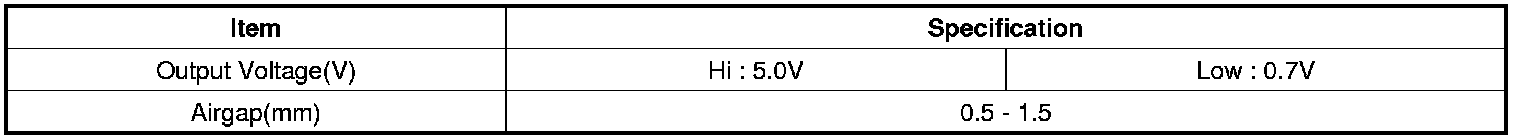

Specification

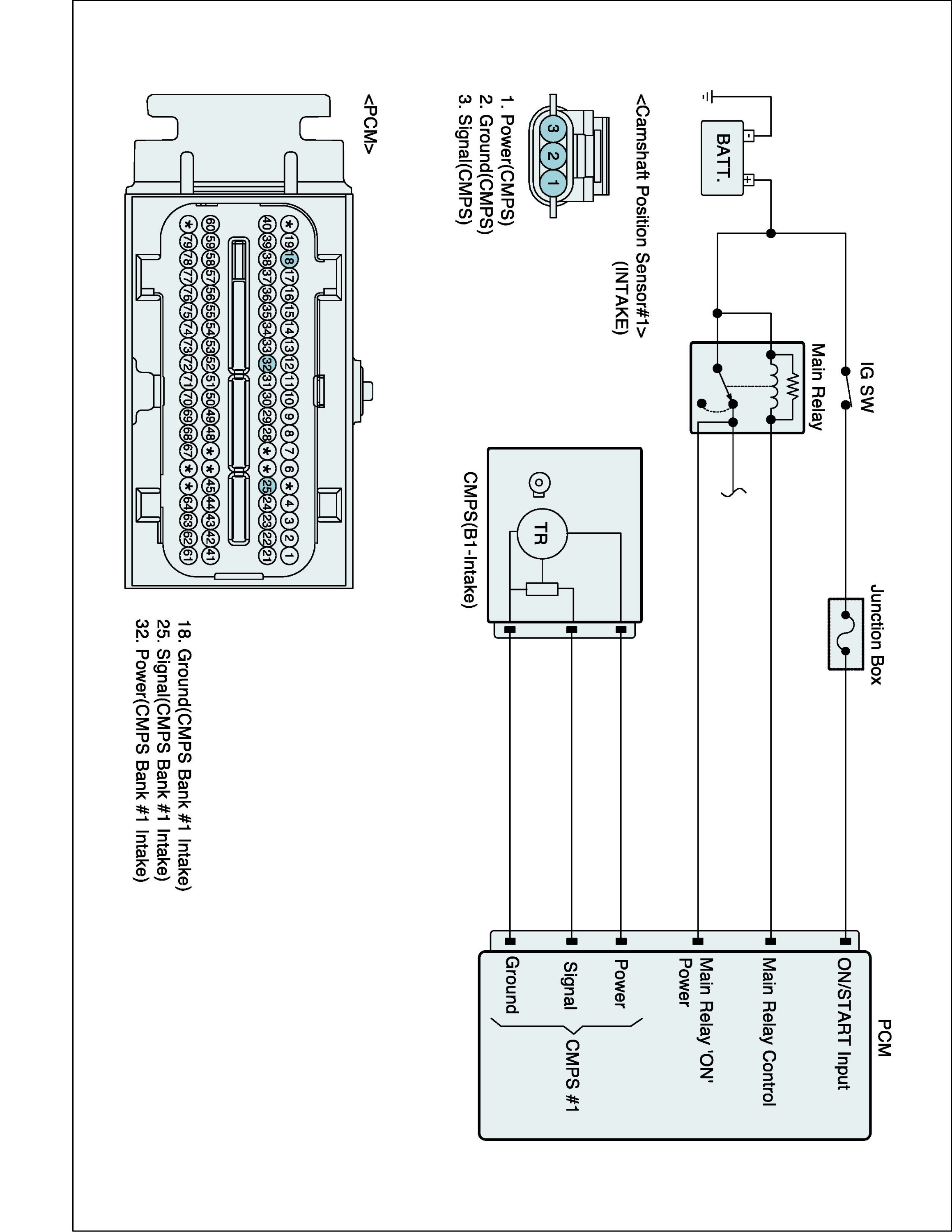

Diagnostic Circuit Diagram





Signal Waveform & Data




Fig.1) Normal waveforms of CKPS & CMPS
