General Information

Component Location





General Description

The knock sensor is attached to the cylinder block and senses engine knocking. The sensor contains a piezoelectric element that converts vibration (or noise) into voltage signal and sends this signal to ECM. With input signals from camshaft position and crankshaft position sensor, ECM can identify which cylinder is knocking. ECM filters vibrations and determines if the vibrations are knocking signal. The Engine Control Module (ECM) uses this signal to suppress knocking by retarding ignition timing. The ECM will set a code (Malfunction Indicator Lamp will Not turn on) if during two driving cycles the Knock sensor's output voltage falls below minimum threshold. This code indicates an unexpected vibration is being read by the Knock sensor or ECM under normal engine operation.

DTC Description

Checking the range of input signal with a knock sensor under detecting condition, ECM senses short in knock sensor circuit or malfunction of sensor. If the average value of the knock signal is out of the threshold value during standard duration, ECM sets P0326.

DTC Detecting Condition

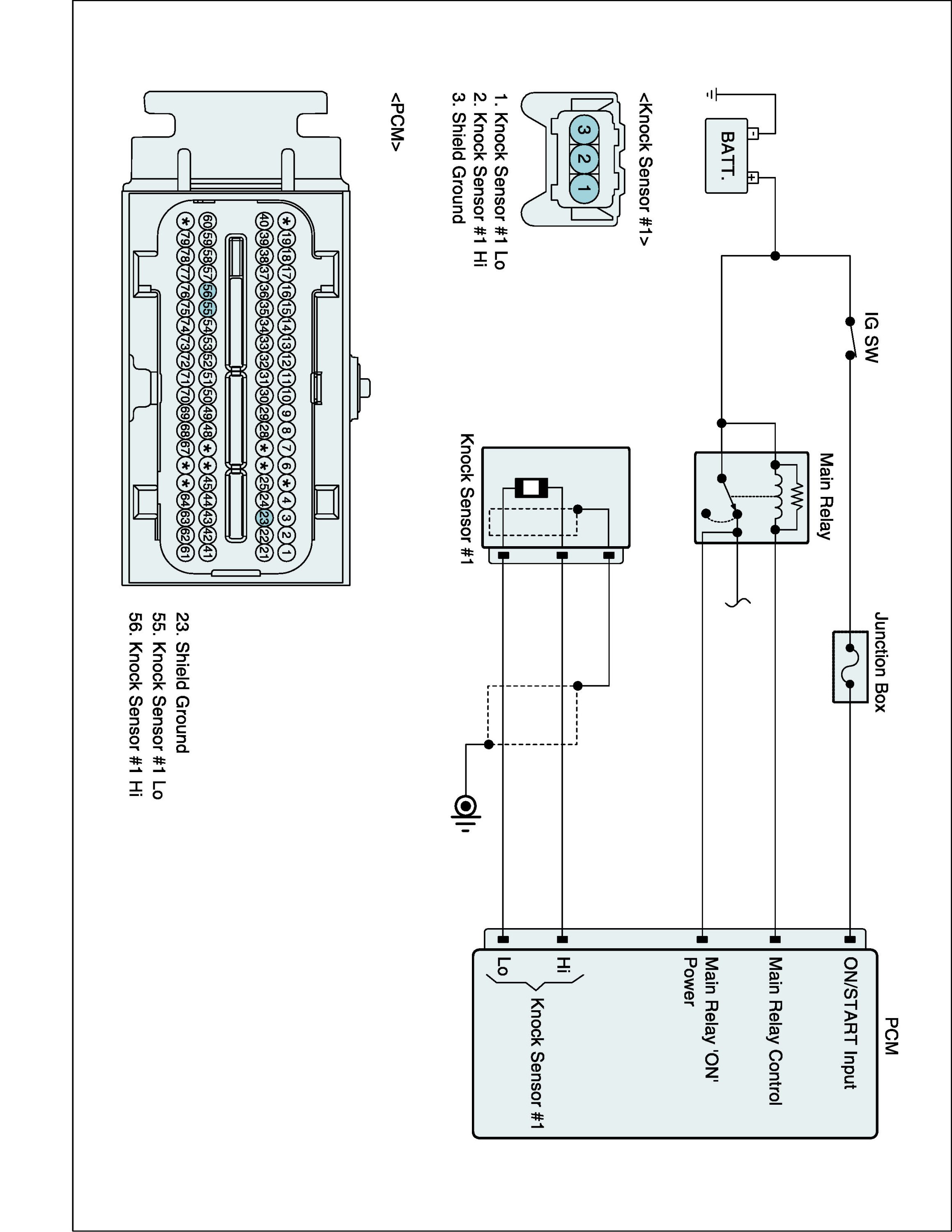

Diagnostic Circuit Diagram





Signal Waveform & Data








Fig.1) Normal waveform of knock sensor at IG on.
Fig.2) Normal data of knock sensor at IG on.
