Component Inspection





Component Inspection

Visually check CKPS and target wheel
1. IG "OFF
2. Visually check CKPS is loosened or target wheel is deformed or damaged.

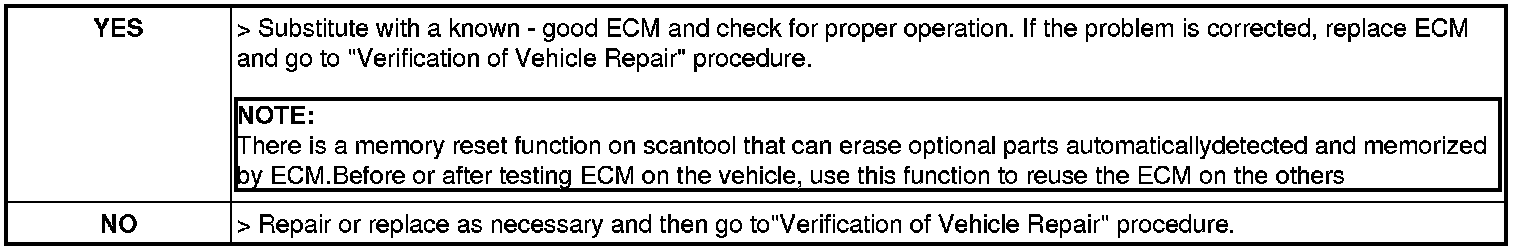

3. Is the above items normal?
