Component Inspection





Component Inspection

Check fuel pump relay
1. IG "OFF" and disconnect Fuel Pump Relay connector.
2. Measure resistance between battery power supply and power supply to fuel pump motor terminals of fuel pump relay. (Measurement "A")
3. Measure resistance between battery power supply and fuel pump relay control terminals of fuel pump relay. (Measurement "B")

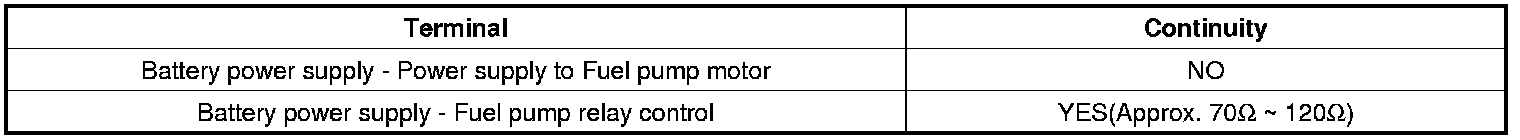

Specification :

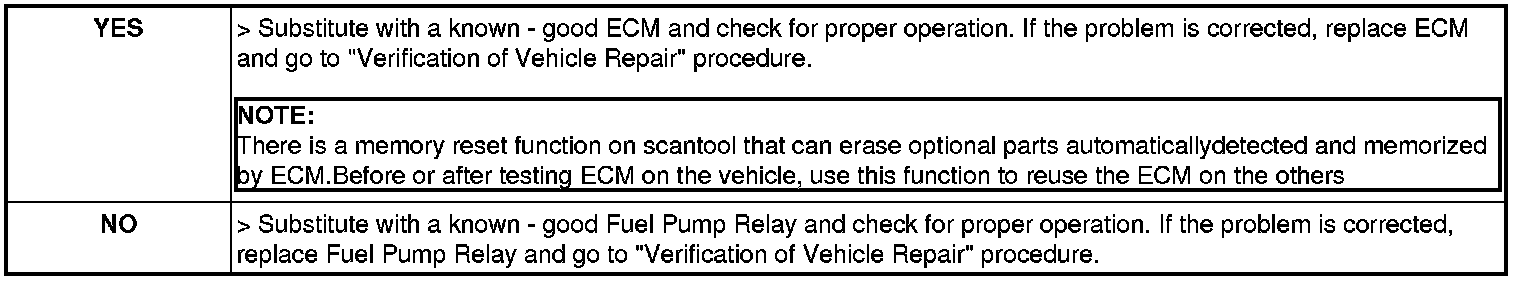

4. Is the measured resistance within specification?
