Component Inspection





Component Inspection

Check EOTS resistance
1. IG "OFF" and disconnect ECTS connector.
2. Measure resistance between signal and ground terminals of EOTS connector after checking out the temperature of EOTS with scantool (Component Side)

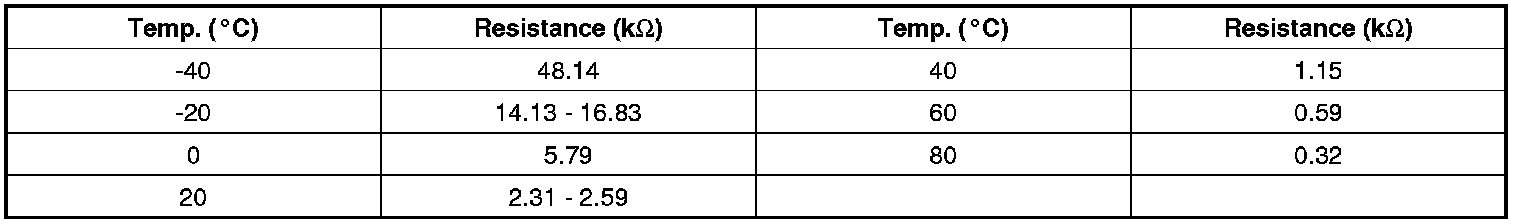

Specification :

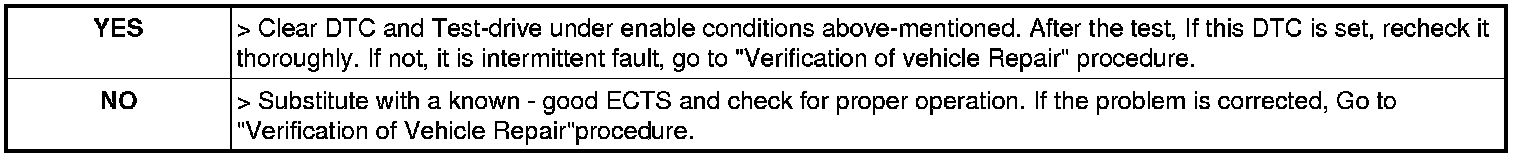

3. Is the measured resistance within specification?
