General Information

Component Location





General Description

The fluid of the CVVT is the engine oil and its density changes according to the engine oil temperature. At this time the Oil Temperature Sensor (OTS) helps compensation against the temperature differences. The Oil Temperature Sensor measures the engine oil temperature before the engine oil comes into the Oil-flow Control Valve (OCV).
According to the measured temperature, the Engine Control Module (ECM) compensates the oil-flow control valve operation time.

DTC Description

Checking the oil temperature, coolant temperature and intake air temperature every 25 sec. under detecting condition, if the difference in temperature at start-up exceeds threshold value, ECM sets P0196. MIL (Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.

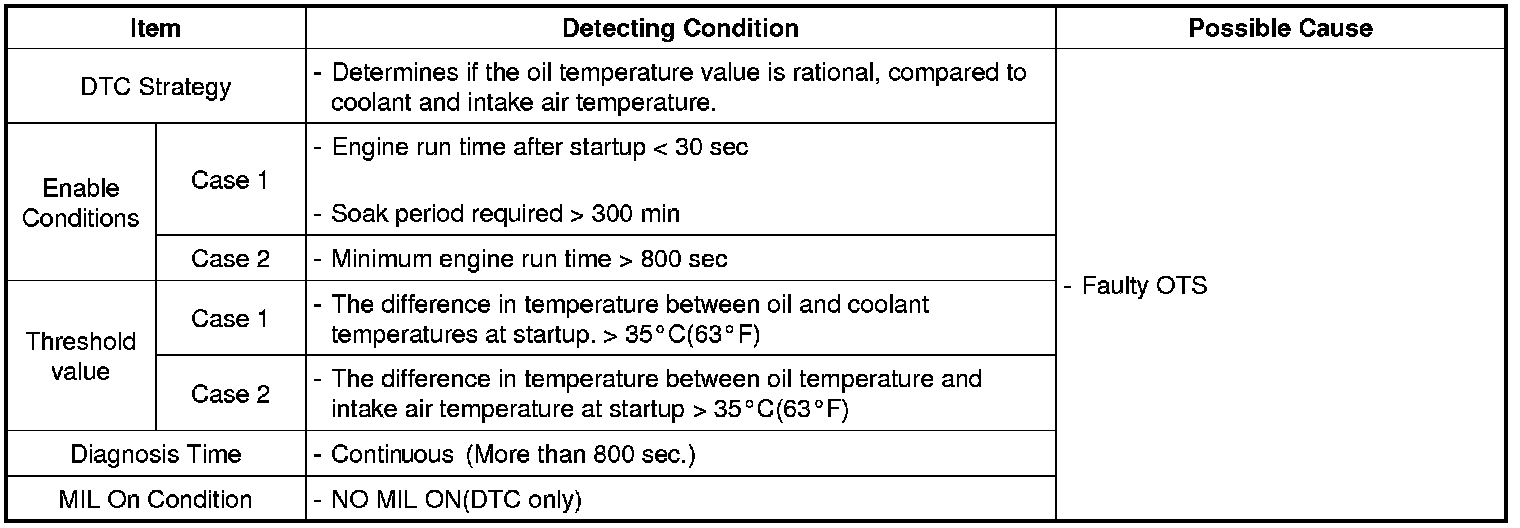

DTC Detecting Condition

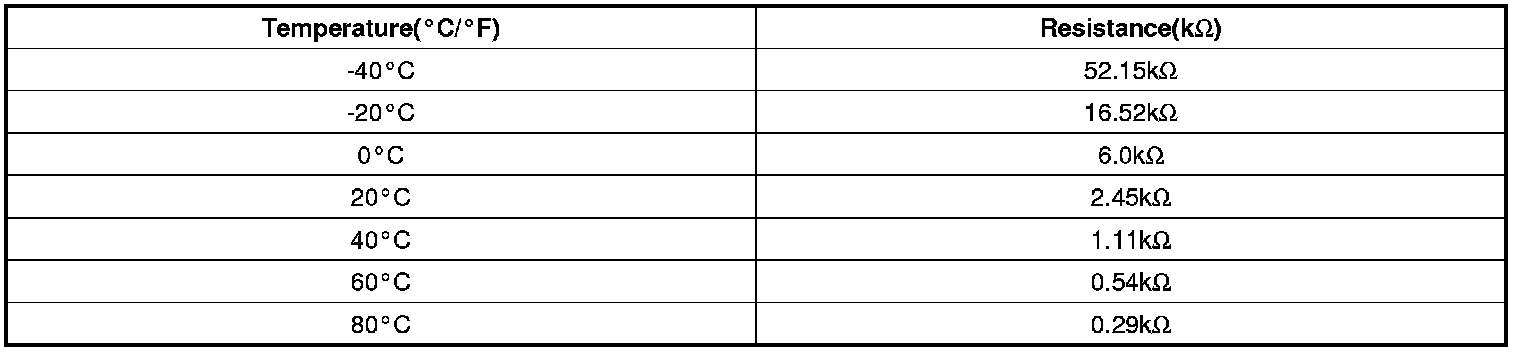

Specification





Diagnostic Circuit Diagram





Signal Waveform & Data












Fig.1) Normal waveform of EOTS (176 °F)
Fig.2) Normal data of IATS & ECTS & EOTS (89.6 °F) at IG on
Fig.3) Normal data of IATS & ECTS & EOTS (195.8 °F) after warming up
