Component Inspection





Component Inspection

Check OTS resistance
1. IG "OFF" and disconnect OTS connector.
2. Measure resistance between signal and ground terminals of OTS connector after checking out the temperature of EOTS with scantool (Component Side)

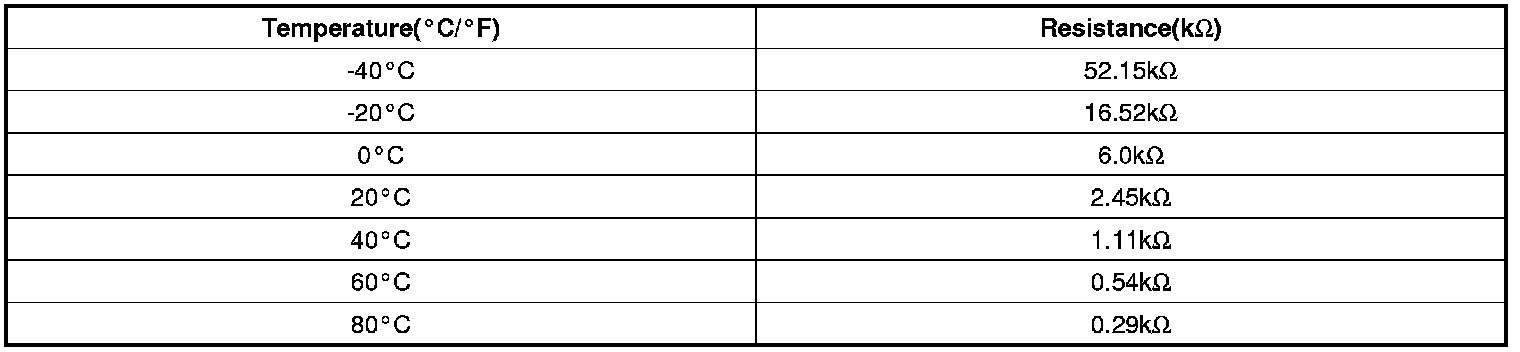

Specification :

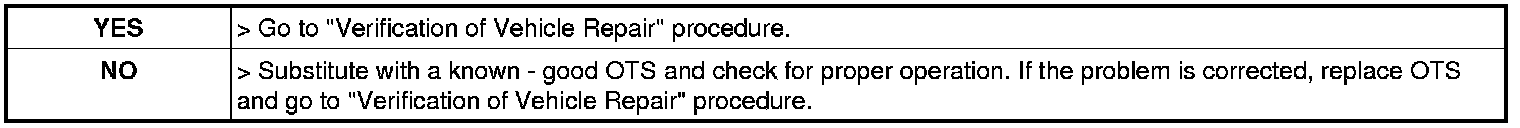

3. Is the measured resistance within specification?
