Component Inspection





Component Inspection

Check IATS resistance
1. IG "OFF" and disconnect IATS connector.
2. Measure resistance between signal and ground terminals of IATS connector after checking out the temperature of IATS with scantool (Component Side)

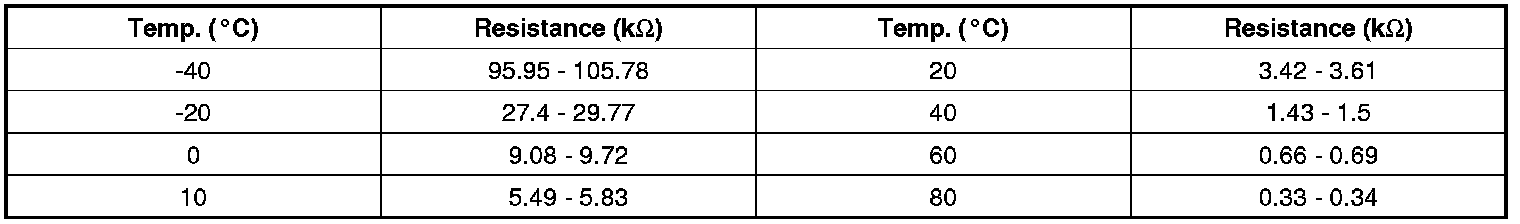

Specification :

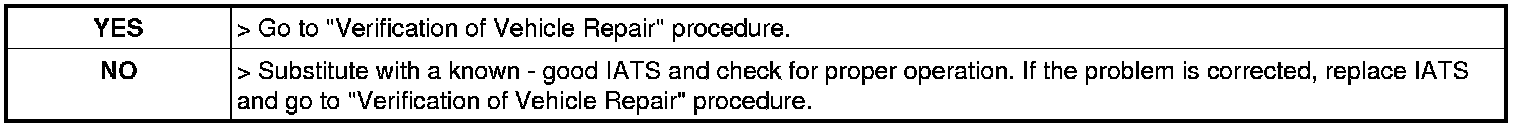

3. Is the measured resistance within specification?
