W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
3. Has a problem been found?






Control Circuit Inspection

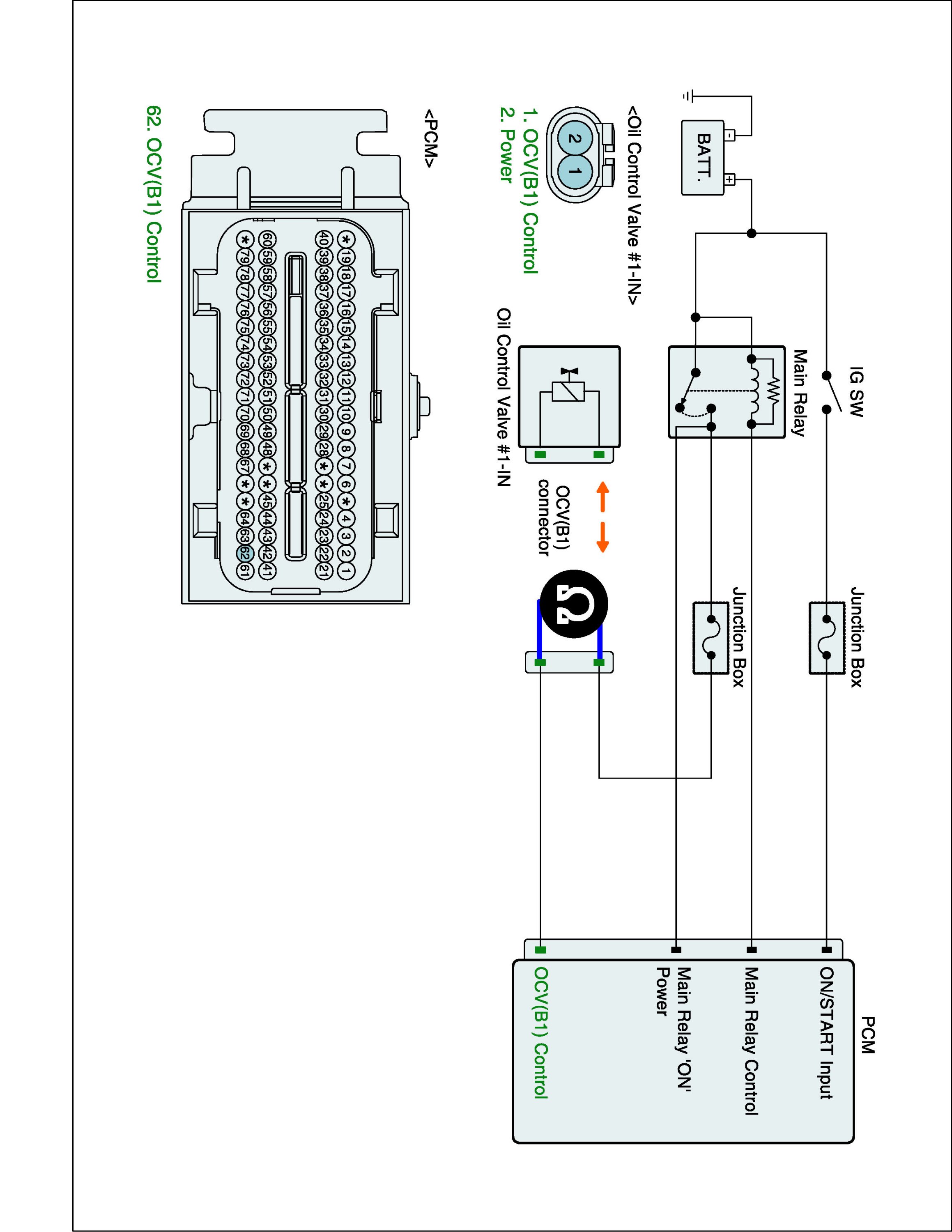

Check short to battery in harness
1. IG "OFF" & Disconnect OCV connector.
2. Measure resistance between power and control terminals of OCV harness connector.

Specification : Infinite





3. Is the measured resistance within specification?
