Component Inspection

Component Inspection

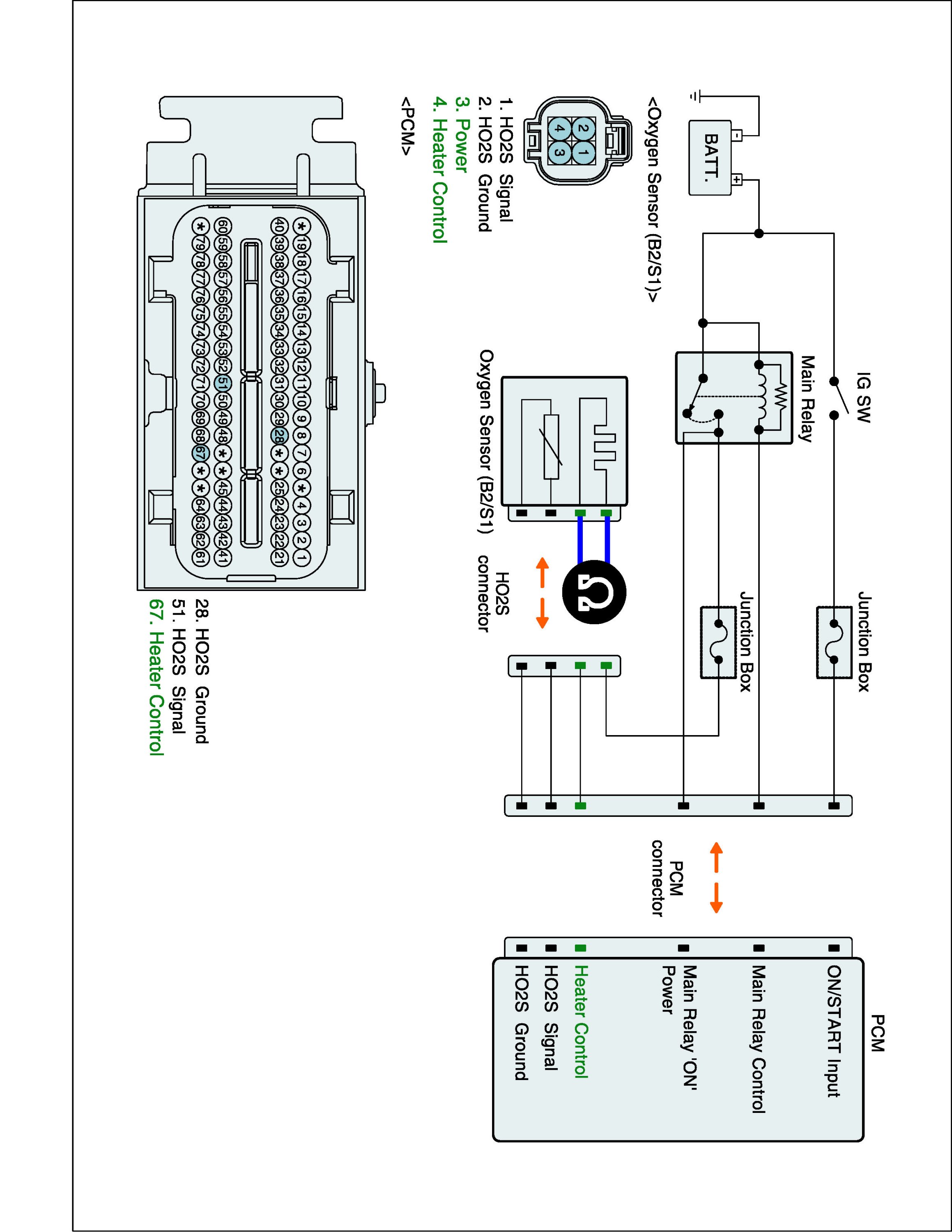

Check HO2S (B2/S1) Heater resistance
1. IG "OFF" and disconnect HO2S (B2/S1) connector
2. Measure resistance between power and control terminals of HO2S (B2/S1) heater (Component Side)

Specification : 3.3 Ohms at 21 °C (69.8 °F)

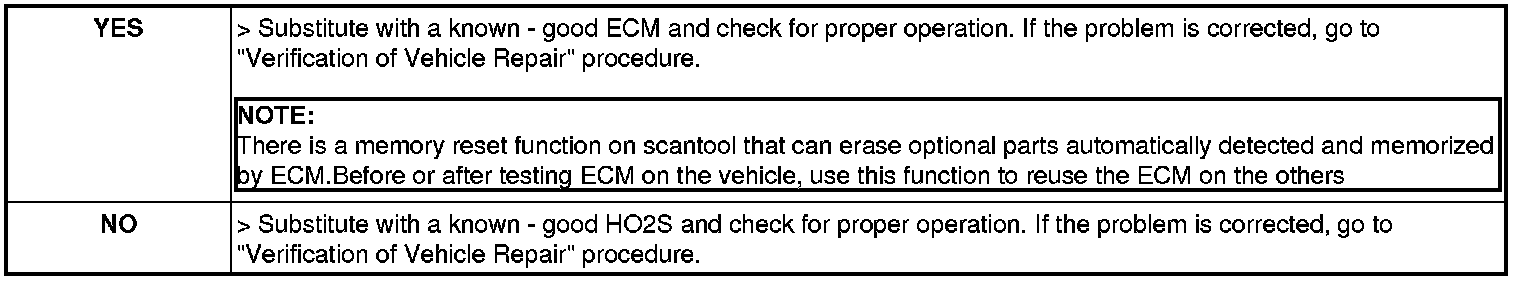

3. Is the measured resistance within specification?
