Component Inspection

Component Inspection

CMPS, CKPS Inspection
1. IG "OFF" and connect scantool.
2. ENG "ON" and Measure signal waveform at signal terminal of CMPS.
3. Measure signal waveform at signal terminal of CKPS.

Specification : 17th signal of the CKPS after missing tooth is aligned with the high signal of the CMPS at idle, ECM recognizes that Synchronization between CKPS and CMPS is completed.
** Refer to Signal Waveform & Data

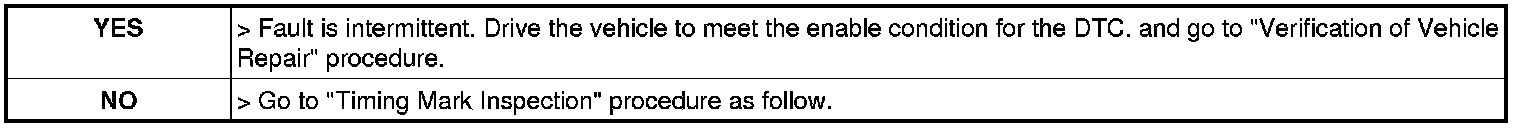

4. Is the measured signal waveform O.K?





Timing Mark Inspection

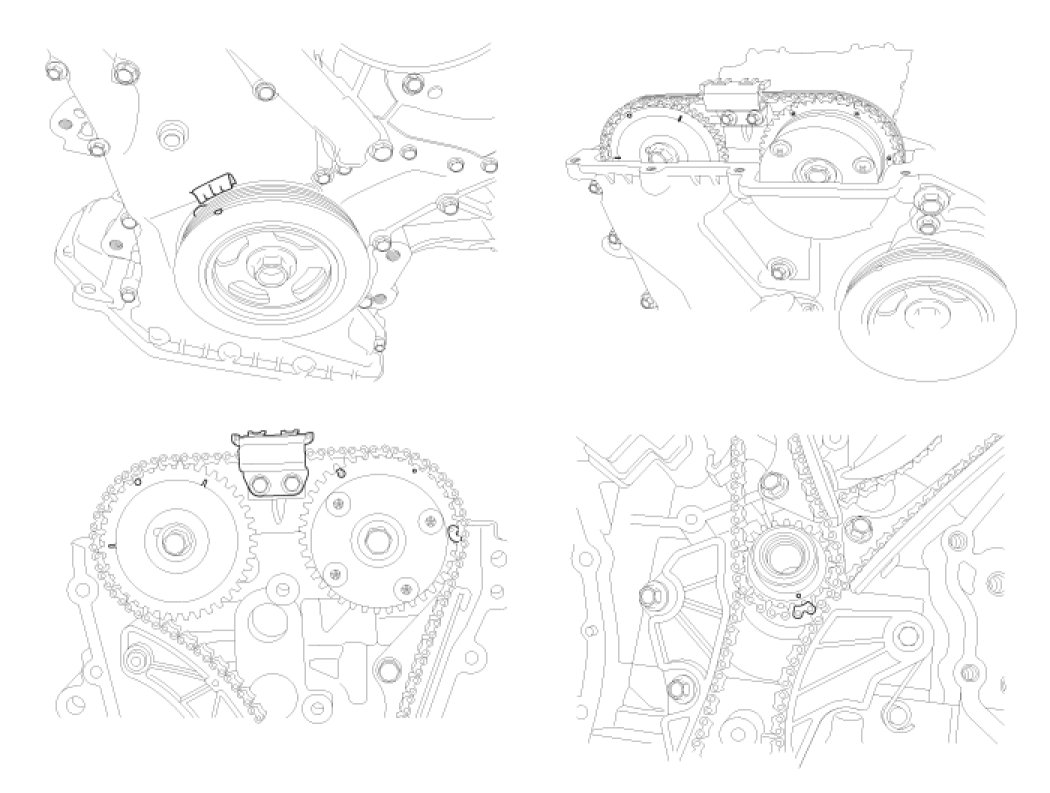

1. IG "OFF" and check the timing mark is correctly aligned.

Reference :

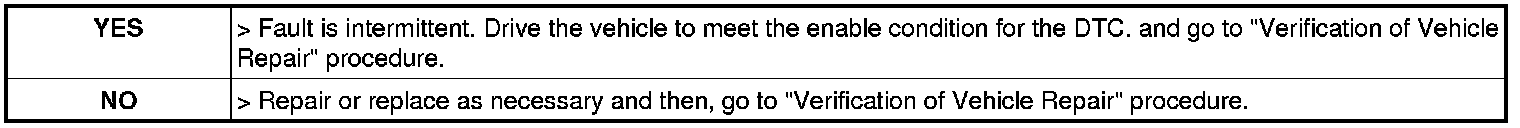

2. Is the timing mark correctly aligned?
