System Inspection

Component Inspection

Visual Inspection
1. Check oil level is O.K.
2. Check Oil and OCV is contaminated.
3. Has a problem been found?





Visually check CKPS and target wheel
1. IG "OFF".
2. Visually check CKPS is loosened or target wheel is deformed or damaged.
3. Is the above items normal?





Check CAM PHASER with actuation test
1. Connect scantool and IG "ON"
2. Select "CAM PHASER INTAKE BANK 1" on the Actuation Test
3. Select "OIL CONTROL VALVE" on the Actuation Test
4. Activates "CAM PHASER INTAKE BANK 1" by pressing "START" button
5. Activates "OIL CONTROL VALVE" by pressing "START" button
6. Repeat this procedure 4 or 5 times to ensure CAM PHASER and valve control solenoid reliability

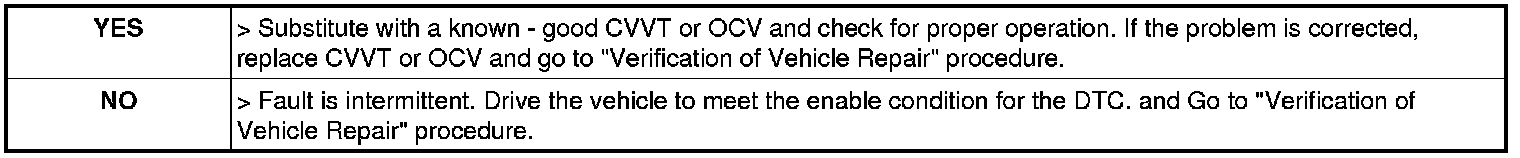

7. Has a problem been found?
