Check OCV resistance
1. IG "OFF" and disconnect OCV connector.
2. Measure resistance between power and signal terminals of OCV. (Component Side)

Specification : 6.7-7.7 Ohms

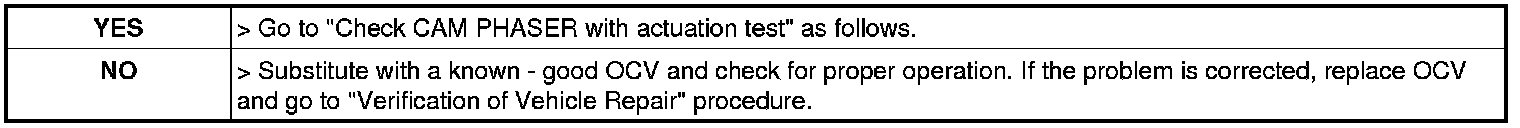

3. Is the measured resistance within specification?





Check CAM PHASER with actuation test
1. Connect scantool and IG "ON"
2. Select "CAM PHASER INTAKE BANK 1" on the Actuation Test
3. Select "OIL CONTROL VALVE" on the Actuation Test
4. Activates "CAM PHASER INTAKE BANK 1" by pressing "START" button
5. Activates "OIL CONTROL VALVE" by pressing "START" button
6. Repeat this procedure 4 or 5 times to ensure CAM PHASER and valve control solenoid reliability

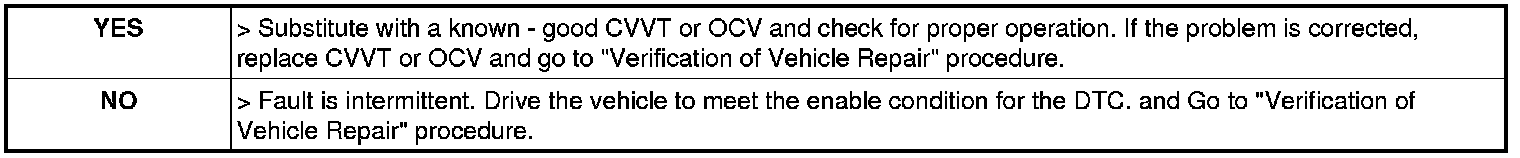

7. Has a problem been found?
