General Information

Component Location





General Description

The TPMS display device is located on the instrument cluster to provide information about TPMS operating conditions and tire pressure. The TPMS display device is consist of TREAD indicator lamp, Location lamp and TPMS Warning indicator lamp. The TREAD indicator lamp is turned on when pressure of one or more tires are below the warning limit level. And then, the location lamp displays the tire position that is the pressure below the warning limit level. The TPMS Warning indicator lamp is turned on if there is the failure in the system.

DTC Description

This DTC indicates that the Tread lamp control circuit short to battery when lamp is on.
Tread lamp control circuit short to ground or open when lamp is off.

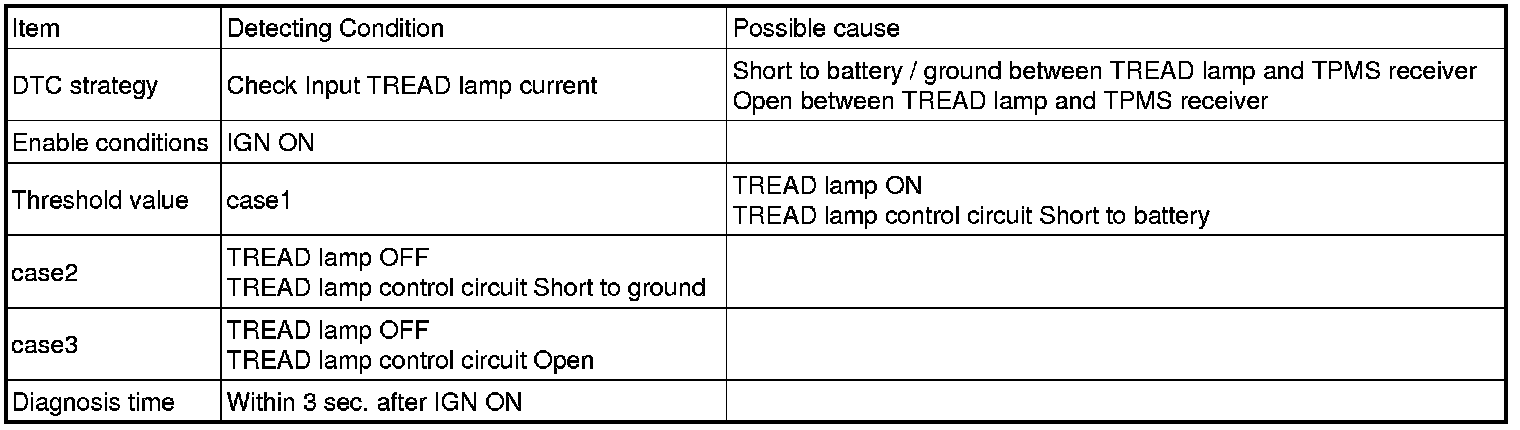

DTC Detecting Condition





Schematic Diagram
