Brake

Monitor Actuation Test

1. Connect scantool to Data Link Connector (DLC)
2. Ignition "ON" & Engine "OFF".
3. Select the "Actuation Test" mode on the scantool.
4. Inspect operating status of all valves with Actuation Test.

Specification : It's normal if operating sound is heard.





Fig.1) Test Condition : Ignition "ON" & Engine "OFF".
Ex) Actuation Test on Front left valve (in)

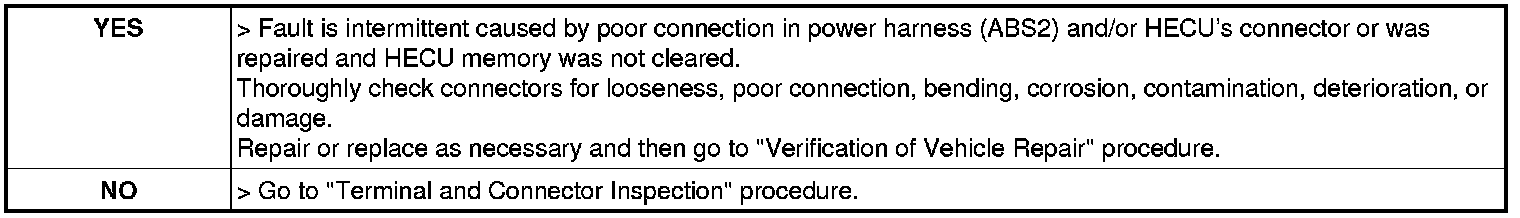

5. Do all valves operate normally?
