Component Inspection

Component Inspection

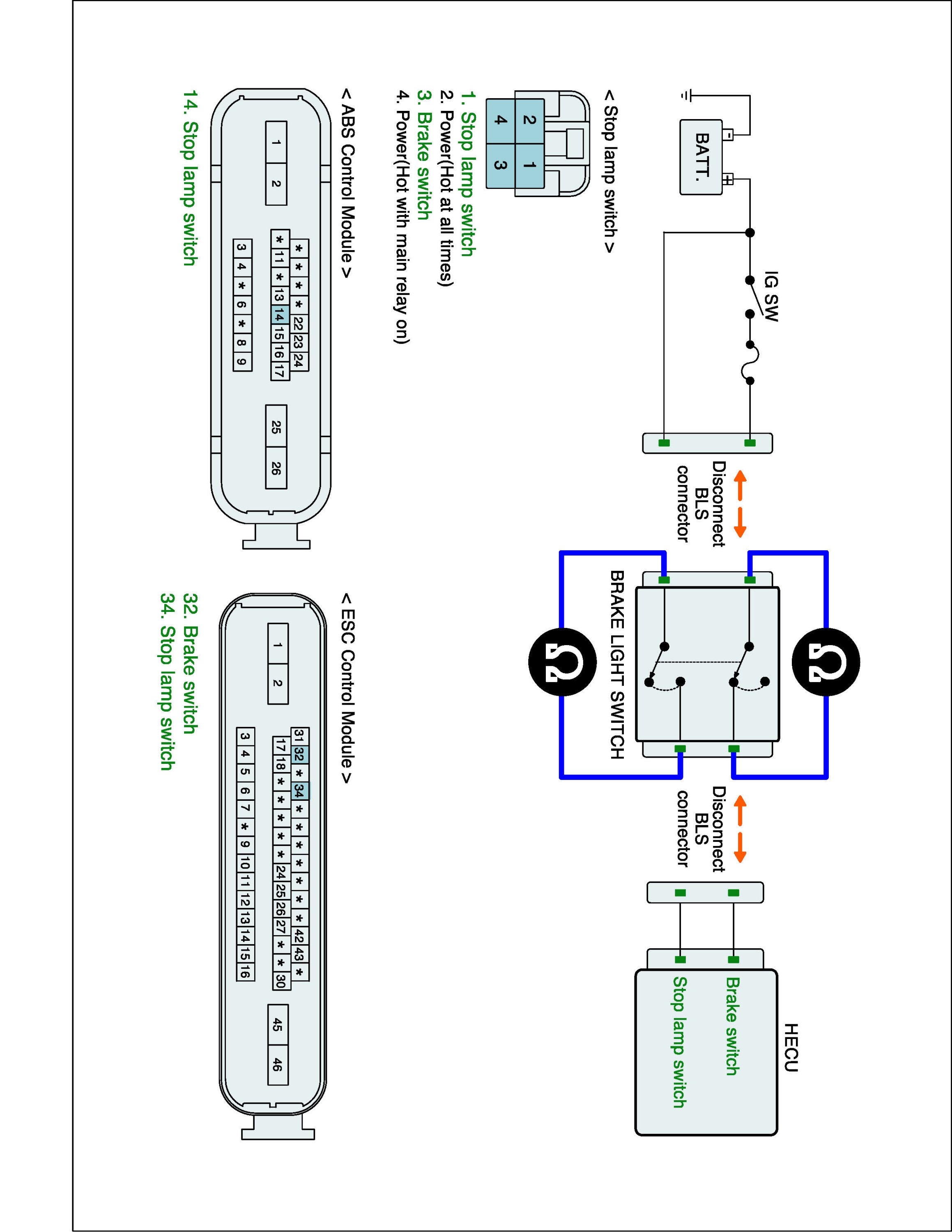

Brake light switch Check
1. Ignition "OFF" & Engine "OFF".
2. Disconnect the stop lamp switch connector.
3. Measure resistance between power terminal and signal terminal of the stop lamp switch connector.

Specification :
Resistance between terminals of the stop lamp switch-Infinity Ohms (when the plunger is pushed down), 0 Ohm (when the plunger isn't pushed down).
Resistance between the terminals of the brake switch-Infinity Ohms (when the plunger is not pushed down), 0 Ohm (when the plunger is pushed down).

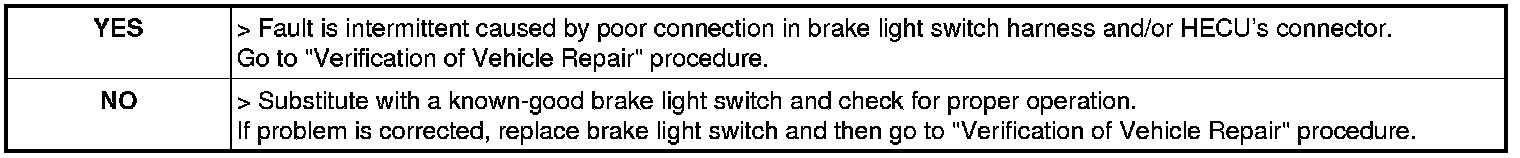

4. Is the measured value within specifications?
