Monitor Scantool Data

Monitor Scantool Data

1. Connect 'TPMS exciter' or scantool to Data Link Connector (DLC).
2. Select "TPMS DIAGNOSIS" mode.
3. Select the "FULL" mode of "TPM DATA VALUES" function.

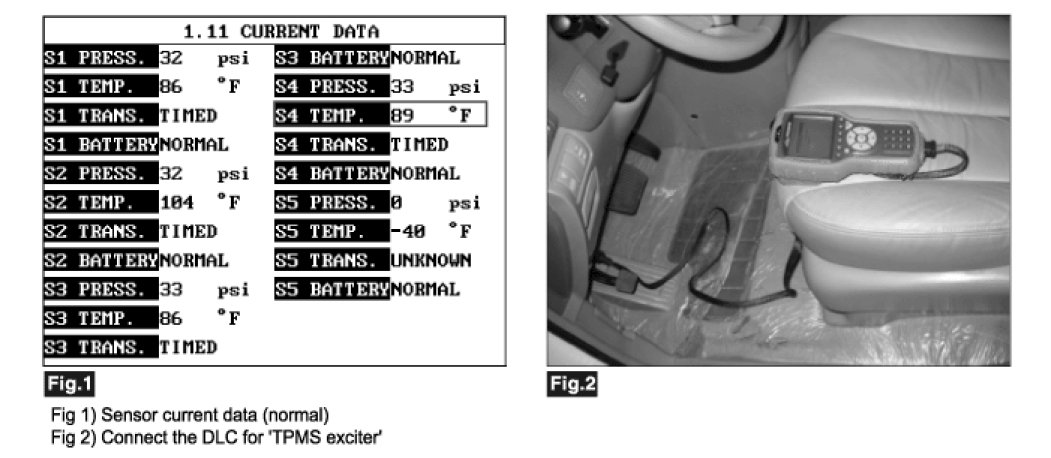

4. Monitor the parameter of "S4 TEMP." on the 'TPMS exciter' or scantool.
A. Specification : 'S4 TEMP.' is Less than 248 °F (120 °C)




5. Is parameter within specifications?
YES
1) Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet.
2) Go to "Verification of vehicle Repair" procedure.
NO
1) Go to "Component Inspection" procedure.
