C1301

General Description

The TPMS system is intended to alert the driver of a motor vehicle if one or more tires on the vehicle has become under-inflated. The Tire Pressure Monitoring system comprises three different types of components which are TPMS Receiver unit, Wheel Electronic (WE) sensor units and Low Frequency Initiator (LFI) units.
A HIGH-LINE TPMS Receiver performs the same functions as the LOW-LINE RX, but in addition is equipped to control four Low Frequency Initiator (LFI) devices, fitted to the vehicle near each of the four tire locations.
Each vehicle wheel is fitted with a Wheel Electronic (WE) sensor unit attached to the valve on the inside of the wheel. The WE measures tire pressure, temperature, and acceleration periodically. The pressure, temperature, and acceleration information is converted to digital form within the MCU inside the WE sensor.
The LFI is located at each vehicle wheel house(F/L, F/R, R/L, R/R). Only HIGH-LINE systems are fitted with LFI units. An LFI unit is mounted in each wheel well of a vehicle to enable the Receiver unit to determine the vehicle position of each WE for which it has a stored ID code.

DTC Description

This DTC indicates that an unmonitored tire is detected.

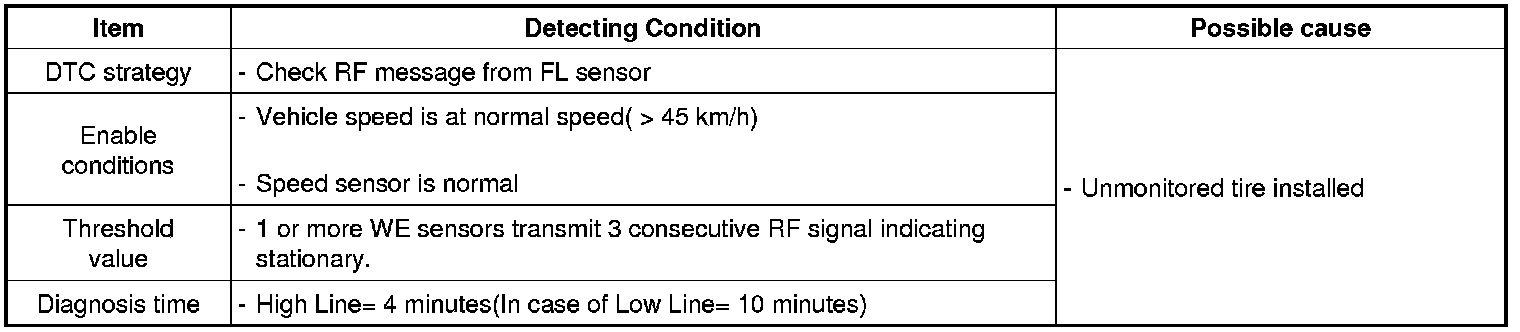

DTC Detecting Condition

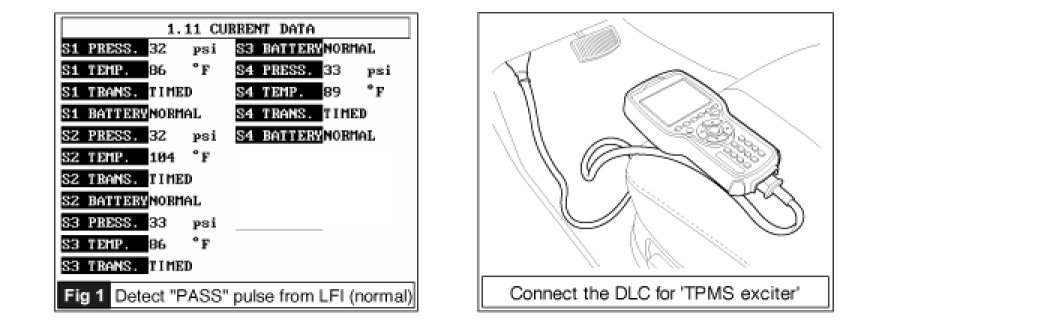

Monitor Scantool Data

1. Connect 'TPMS exciter' or scantool to Data Link Connector(DLC).
2. Select "TPMS DIAGNOSIS" mode.
3. Select the "FULL" mode of "TPM DATA VALUES" function.
4. Check current data about S1~S4 on the 'TPMS exciter' or scantool.

Specification : All current data for S1~S4 is displayed normally





5. Is the current data displayed normally?
YES
> Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet.
> Go to "Verification of vehicle Repair" procedure.
NO
> Replace an unmonitored tire with a WE sensor-installed tire and register sensor ID with 'TPMS exciter'.
> Go to "Verification of Vehicle Repair" procedure.

Verification of Vehicle Repair

After a repair, it is essential to verify that the fault has been corrected.
1. Connect TPMS exciter or scantool and select "Diagnostic Trouble Codes(DTCs)" mode
2. Using a TPMS exciter or scantool, Clear DTC.
3. Operate the vehicle within DTC Enable conditions in General information.
4. Are any DTCs present ?
YES
> Go to the applicable troubleshooting procedure.
NO
> System performing to specification at this time.
