General Information

Component Location





General Description

When the vehicle is turning with respect to a vertical axis, the yaw rate sensor detects the yaw rate electronically by the vibration change of plate fork inside the yaw rate sensor.
If yaw velocity reaches the specific velocity after it detects the vehicle' yawing, the ESC control is reactivated.
The lateral G sensor senses vehicle's lateral G. A small element inside the sensor is attached to a deflectable leverarm by lateral G.
Direction and magnitude of lateral G loaded to vehicle can be known with electrostatic capacity changing according to lateral G.

DTC Description

If the difference between estimated value and measured value of the sensor is larger than predefined value for predefined time, the failure is recognized.

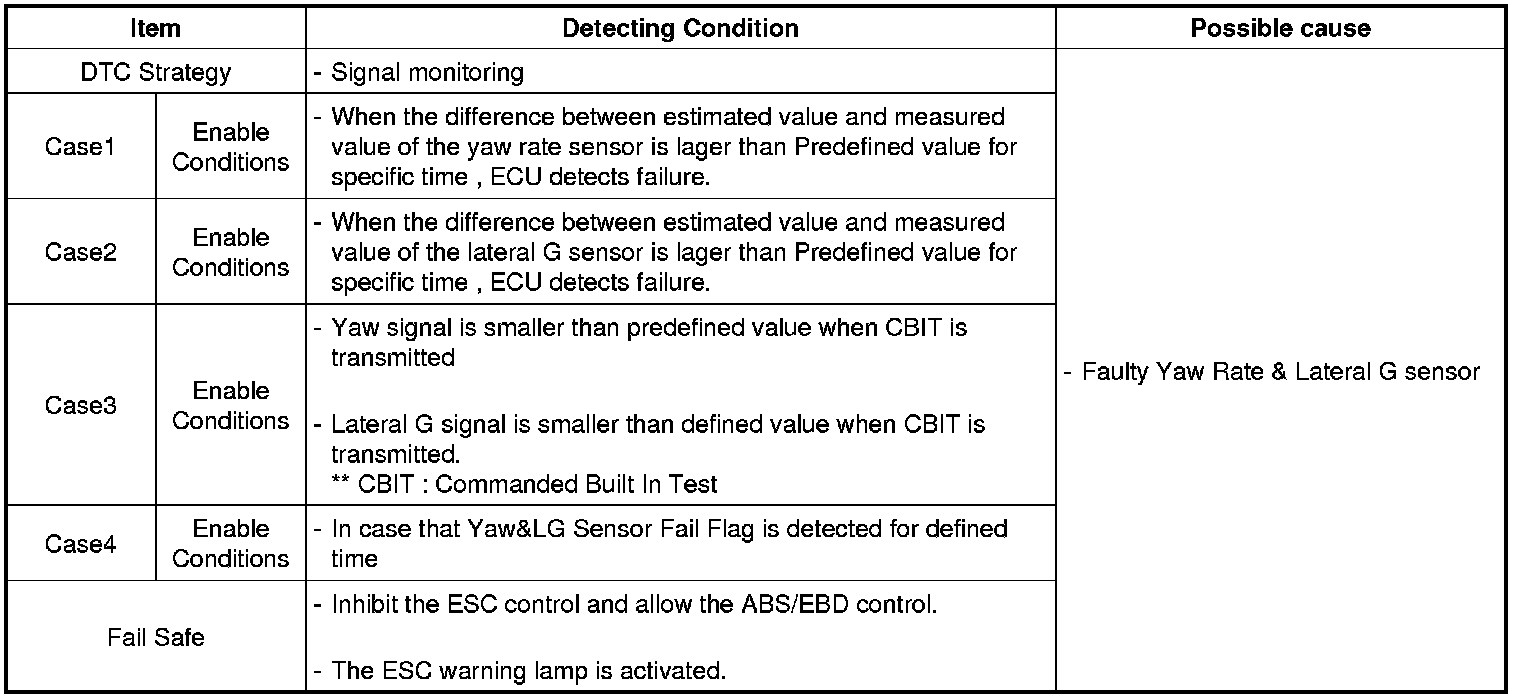

DTC Detecting Condition





Diagnostic Circuit Diagram
