Component Inspection

Component Inspection

1. Ignition "OFF".
2. Ignition "ON" & Engine "OFF".
3. Operate the vehicle within DTC Detecting Condition in General Information. (Start and drive vehicle in gear and maintain vehicle speed at or above 40 km/h. (24 mph))
4. Using a scantool, Clear DTC.
5. Select "Diagnostic Trouble Codes (DTCs)" mode again.

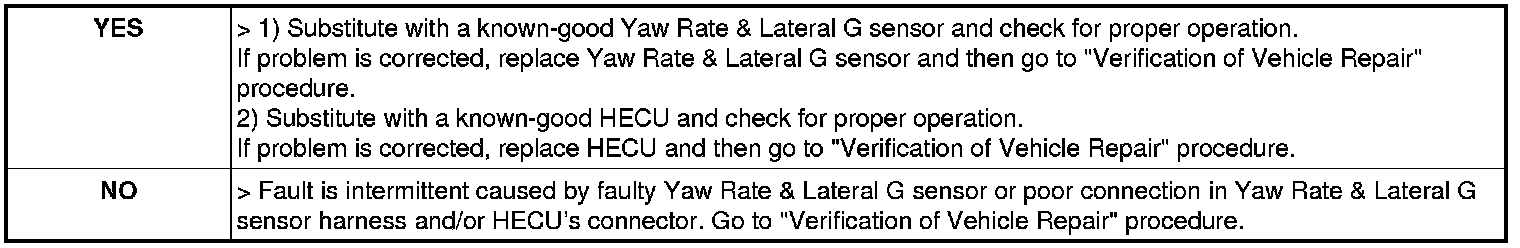

6. Are any DTCs present?
