W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminal condition. Faults can also be caused by interference from other electrical systems and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
3. Has a problem been found?

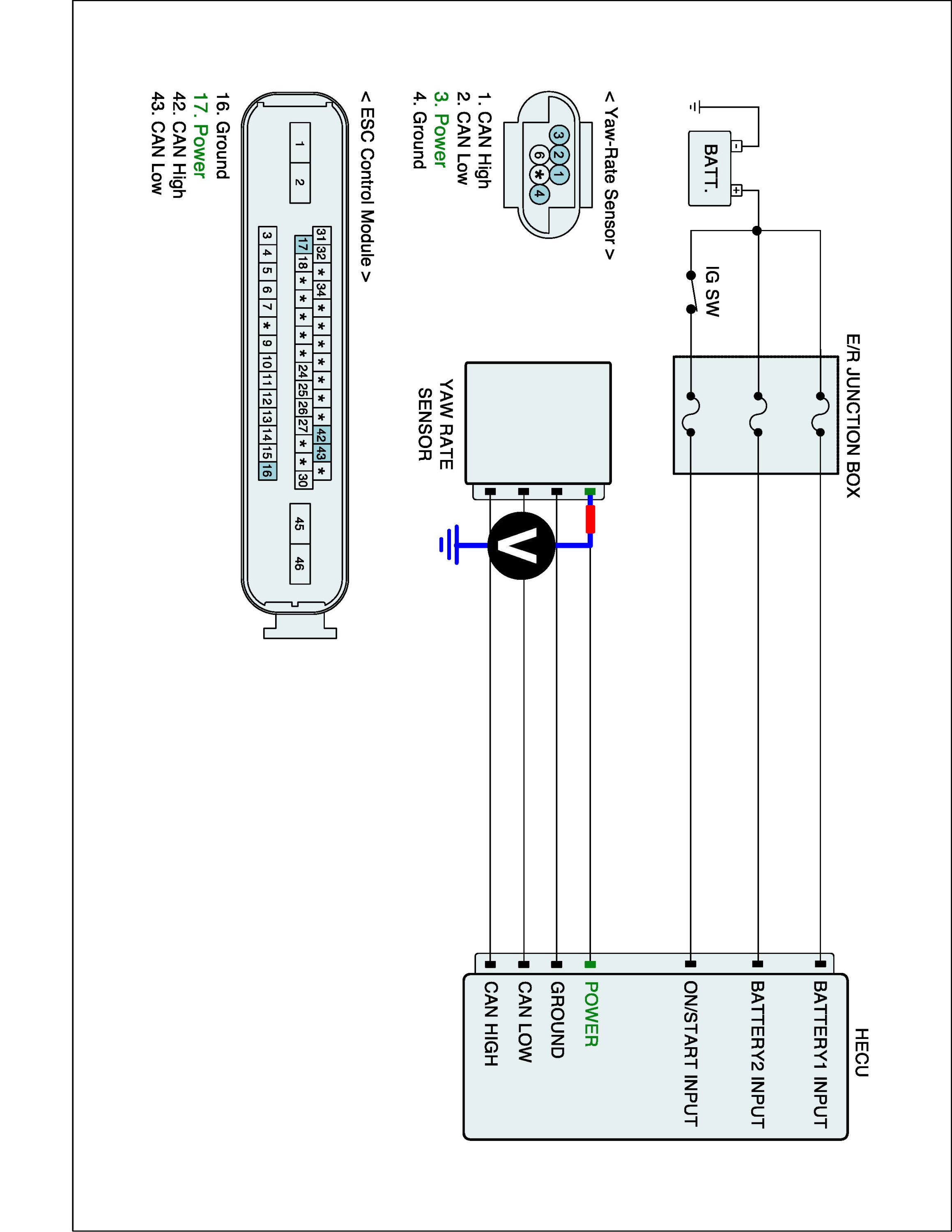

Power Circuit Inspection

Open or Short Check
1. Ignition "ON" & Engine "OFF".
2. Measure voltage between power terminal of the Yaw Rate & Lateral G sensor harness connector and chassis ground.

Specification : Approx. 12V

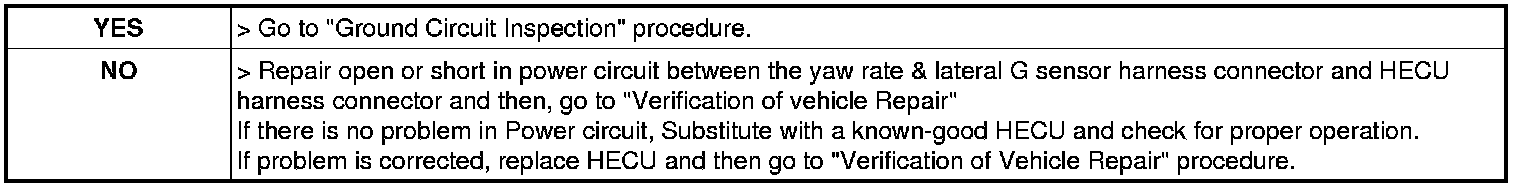

3. Is the measured value within specifications?

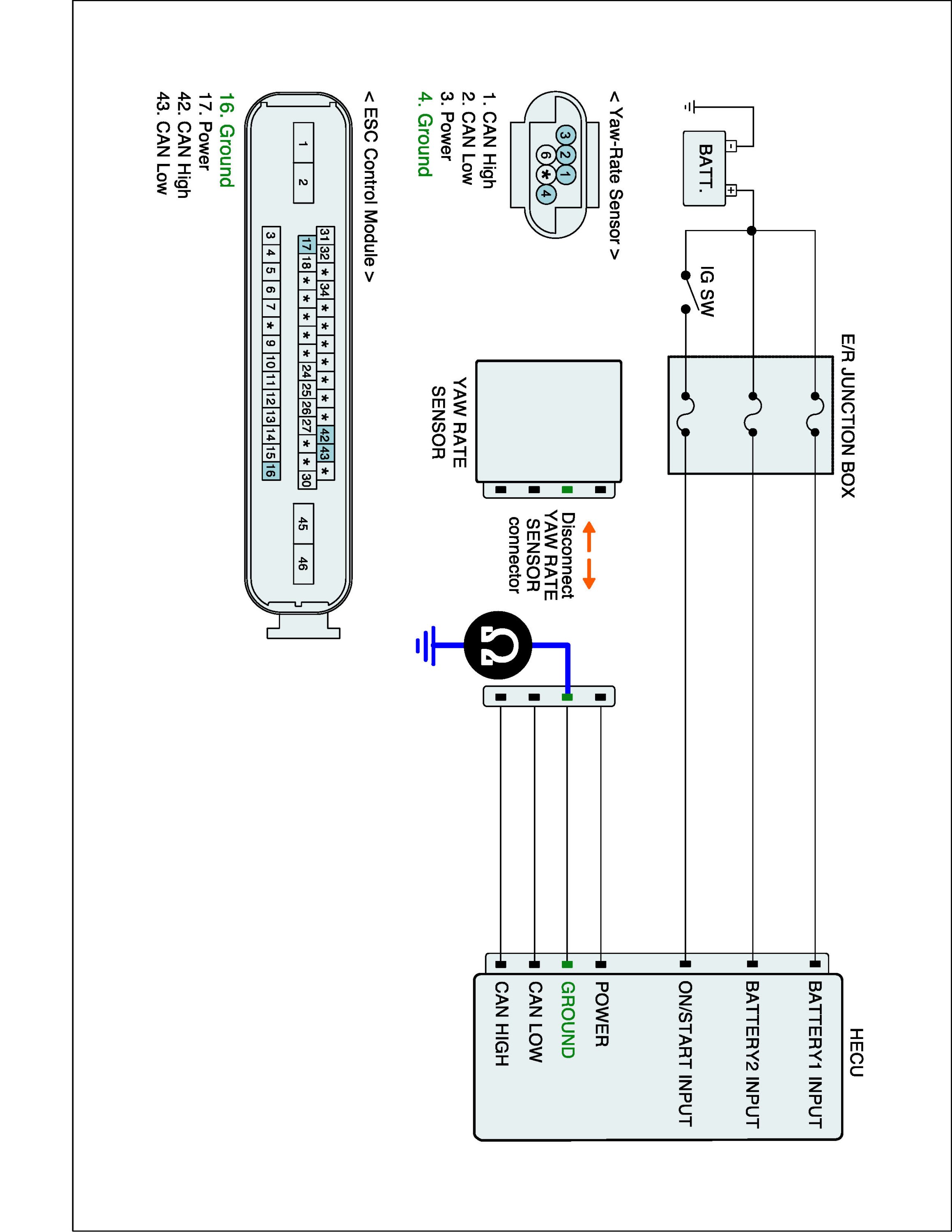

Ground Circuit Inspection

Open or Short Check
1. Ignition "OFF" & Engine "OFF".
2. Disconnect yaw rate & lateral G sensor connector.
3. Measure resistance between ground terminal of the yaw rate & lateral G sensor harness connector and chassis ground.

Specification : Approx. below 1 Ohm

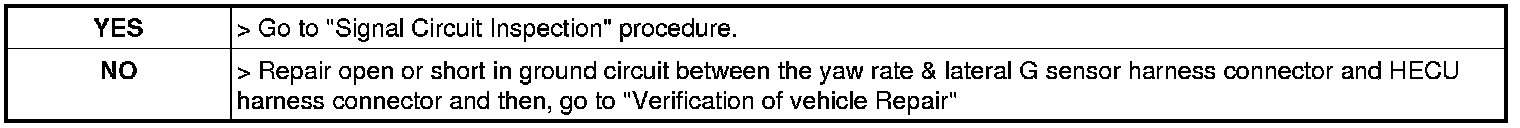

4. Is the measured value within specifications?






Signal Circuit Inspection

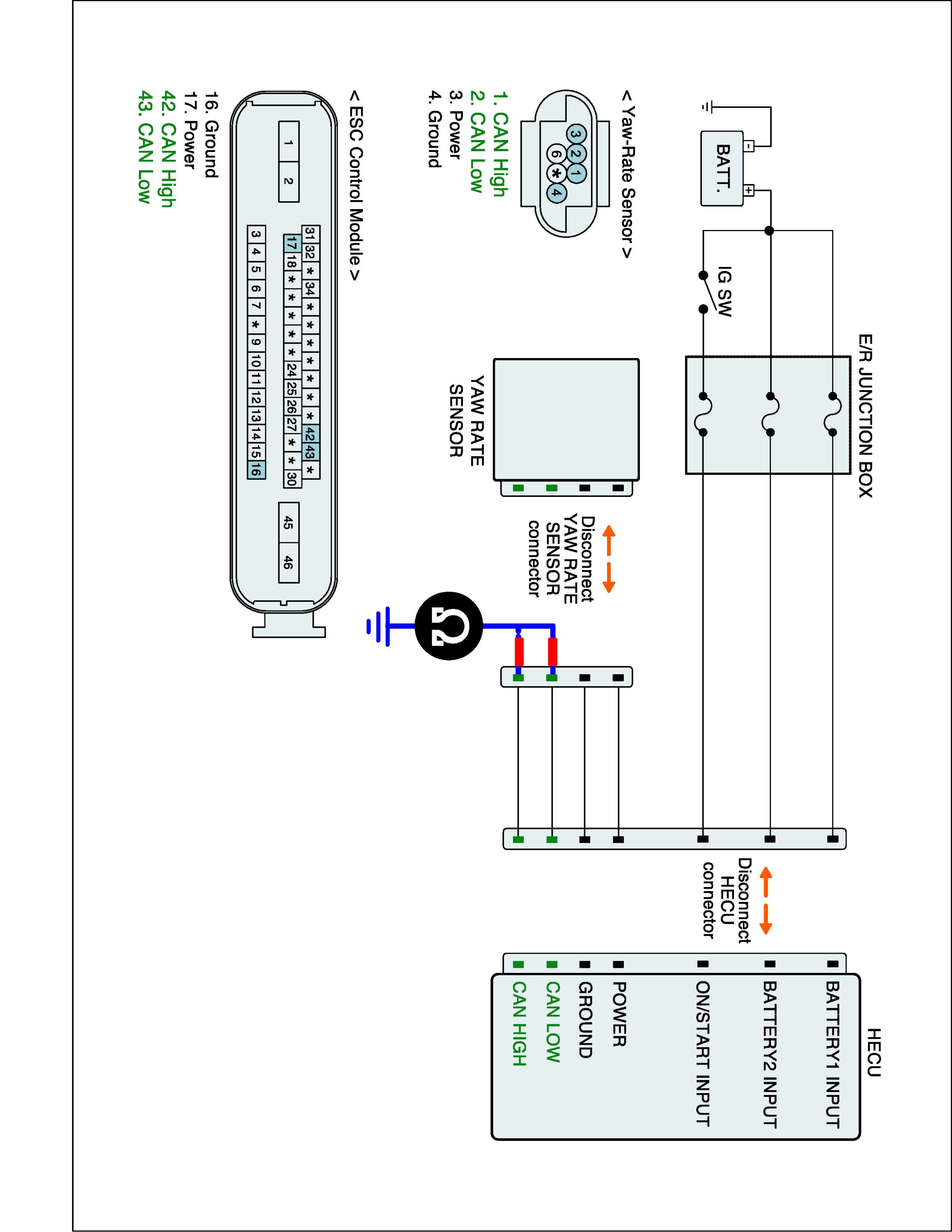

Short Check (to ground)
1. Ignition "OFF" & Engine "OFF".
2. Disconnect yaw rate & lateral G sensor, HECU connector.
3. Measure resistance between CAN LOW terminal, CAN HIGH terminal of the yaw rate & lateral G sensor harness connector and chassis ground.

Specification : Infinity Ohms

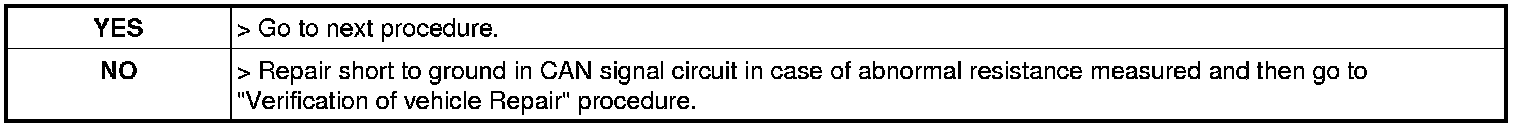

4. Is the measured value within specifications?

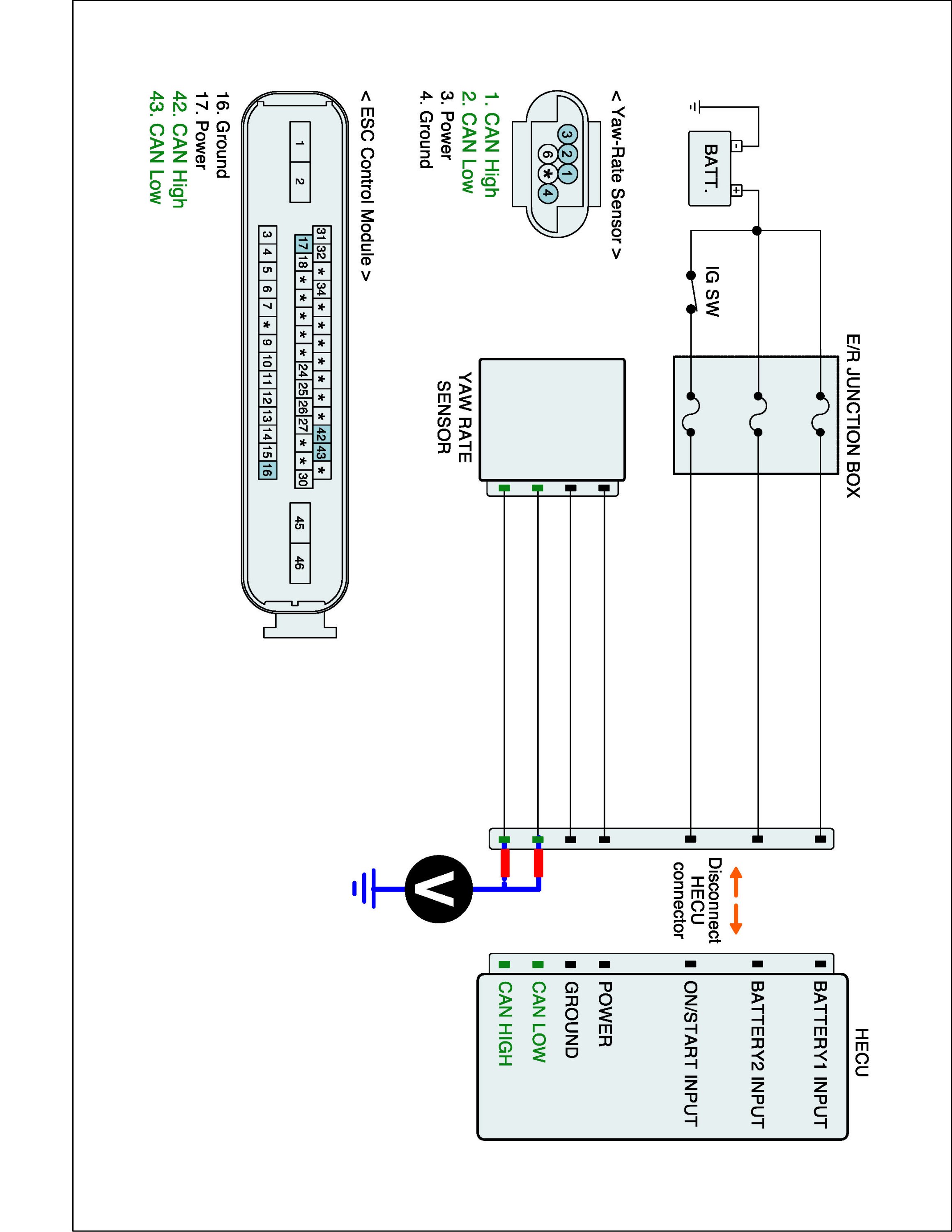

Short Check (to battery)
1. Ignition "ON" & Engine "OFF".
2. Disconnect HECU connector.
3. Measure voltage between CAN LOW terminal, CAN HIGH terminal of the HECU harness connector and chassis ground.

Specification : Approx. 0V

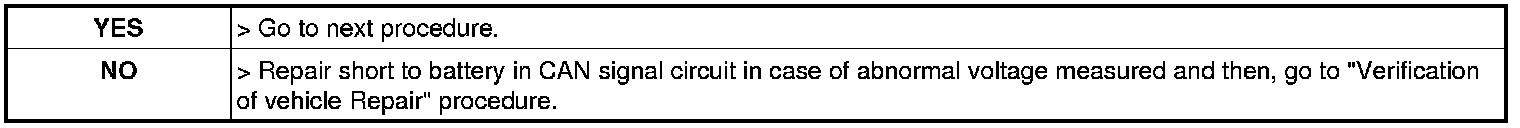

4. Is the measured value within specifications?

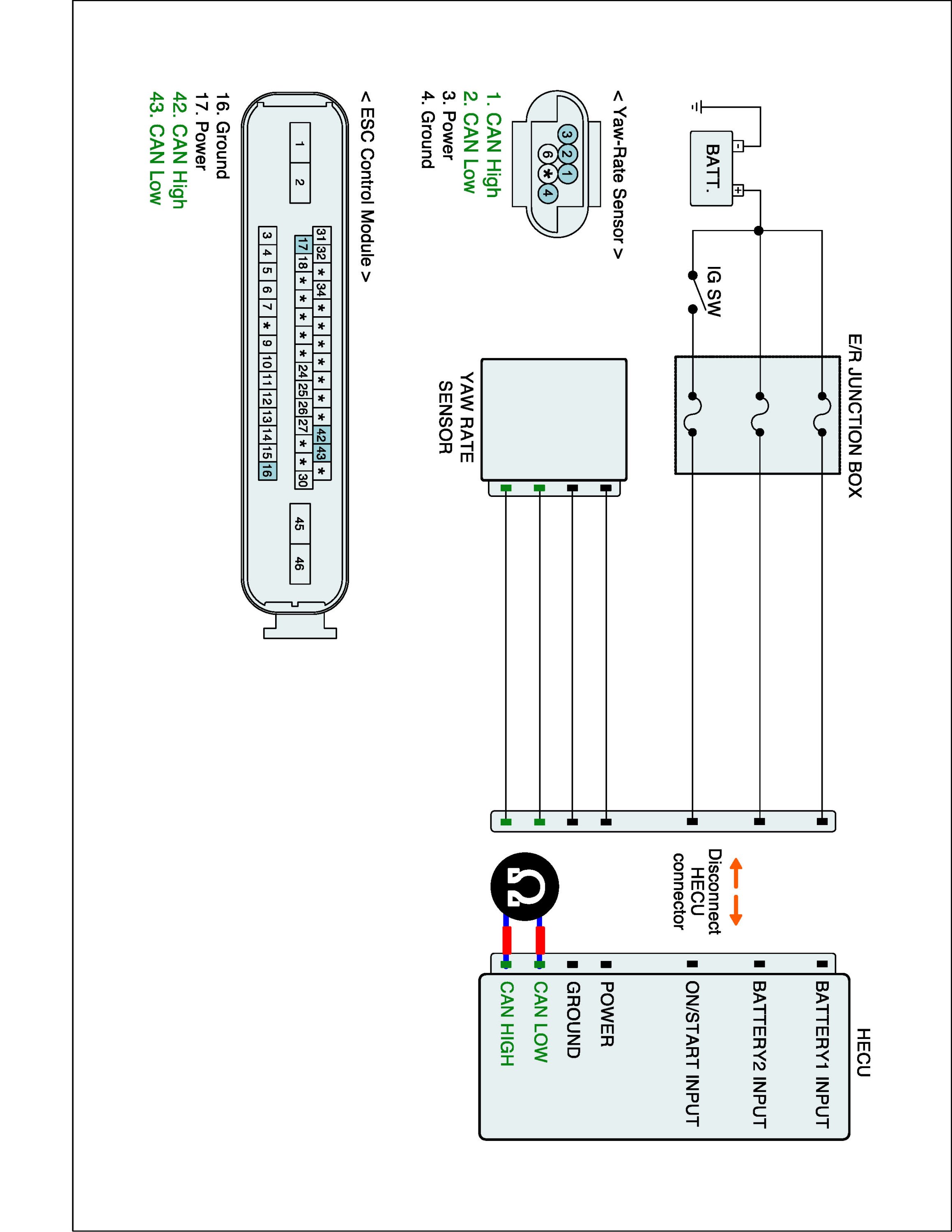

Internal Resistance Check
1. Ignition "OFF" & Engine "OFF".
2. Disconnect HECU connector.
3. Measure resistance between CAN LOW terminal and CAN HIGH terminal of the HECU connector.

Specification : Approx. 120 Ohms

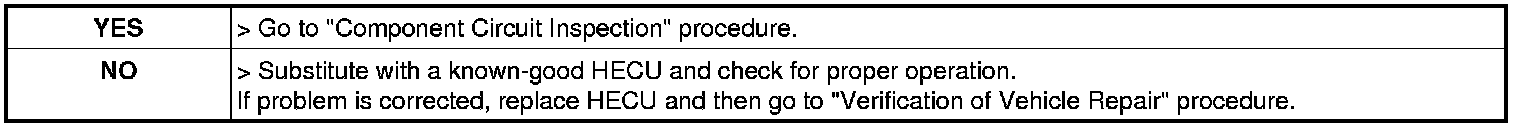

4. Is the measured value within specifications?
