Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & Engine "ON".
3. Turn the steering wheel to the left or right.
4. Monitor the "STEERING SNSR" parameters on the Scantool.

Specification : If the parameters are changed according to wheel position during steering the wheel, it is normal condition.





Fig.1) Test Condition : Ignition "ON" & Engine "ON".
Normal Data

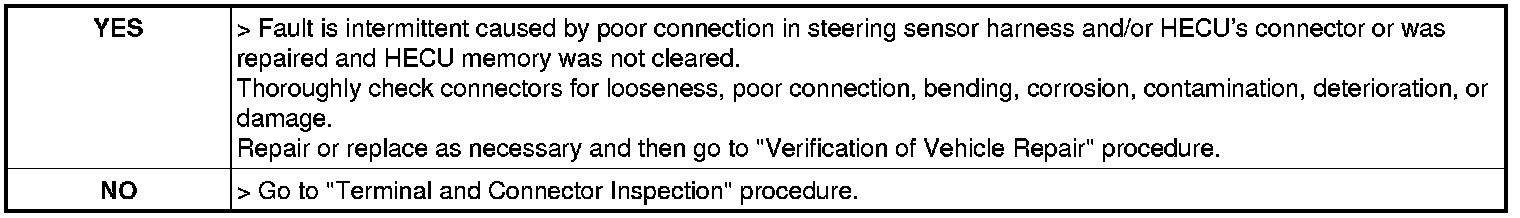

5. Whenever steering wheel is turned, is the steering sensor's scantool data changed?
