W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminal condition. Faults can also be caused by interference from other electrical systems and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
3. Has a problem been found?






Power Circuit Inspection

Open or Short Check
1. Ignition "ON" & Engine "OFF".

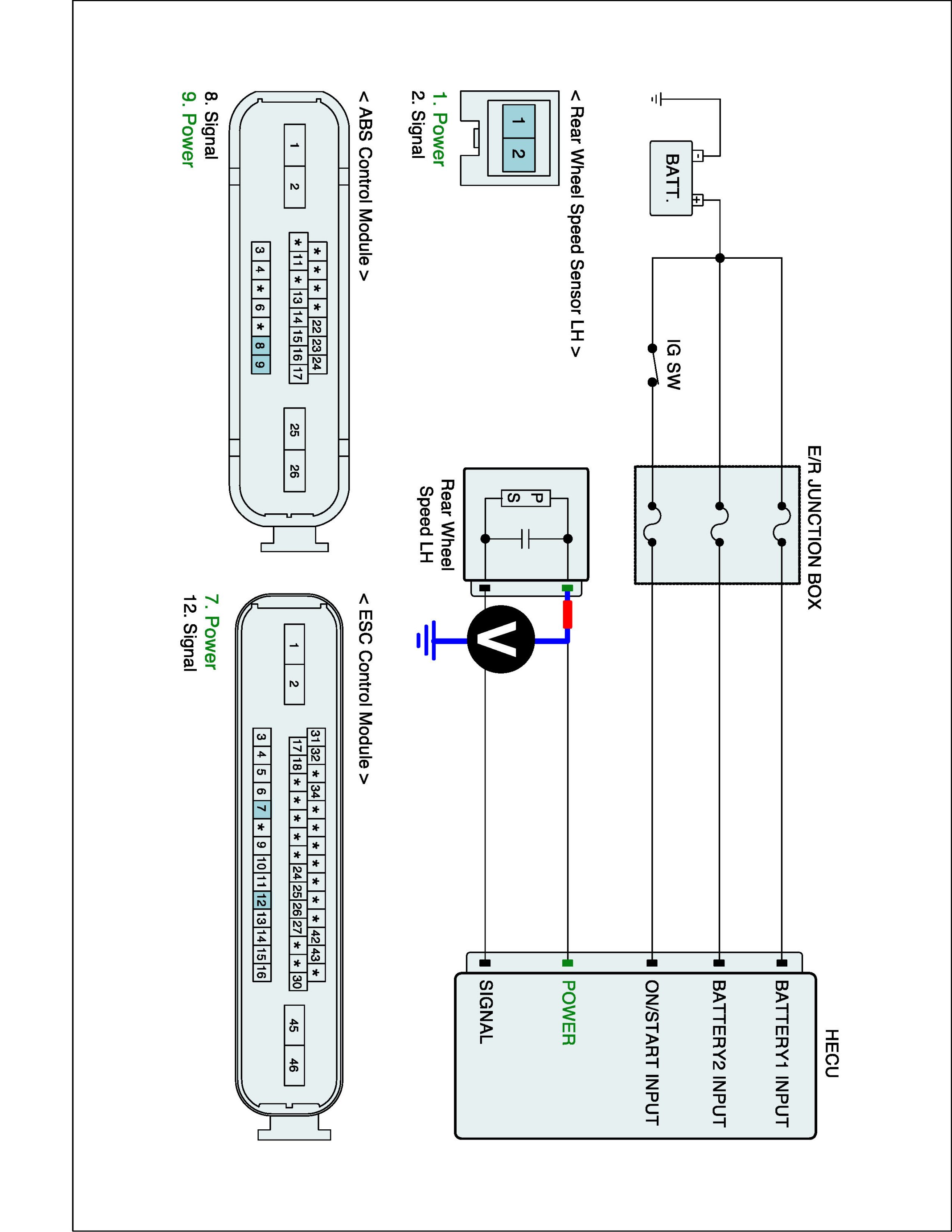

2. Measure voltage between power terminal of the wheel speed sensor harness connector and chassis ground.

Specification : Approx. B+

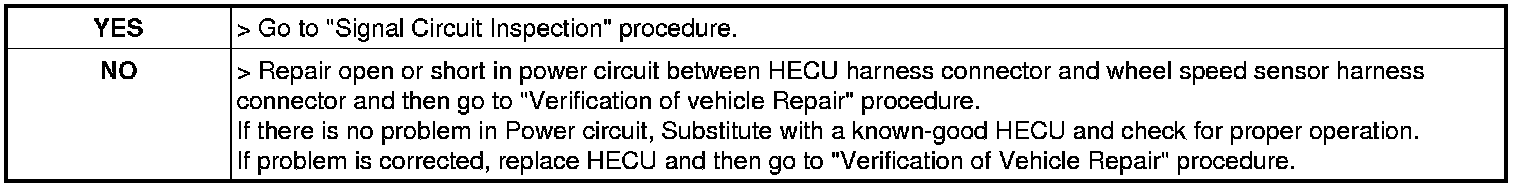

3. Is the measured value within specifications?






Signal Circuit Inspection

Wheel speed sensor circuit check
1. Lift the vehicle.
2. Ignition "ON" & Engine "OFF".
3. Turn the wheel by hand.

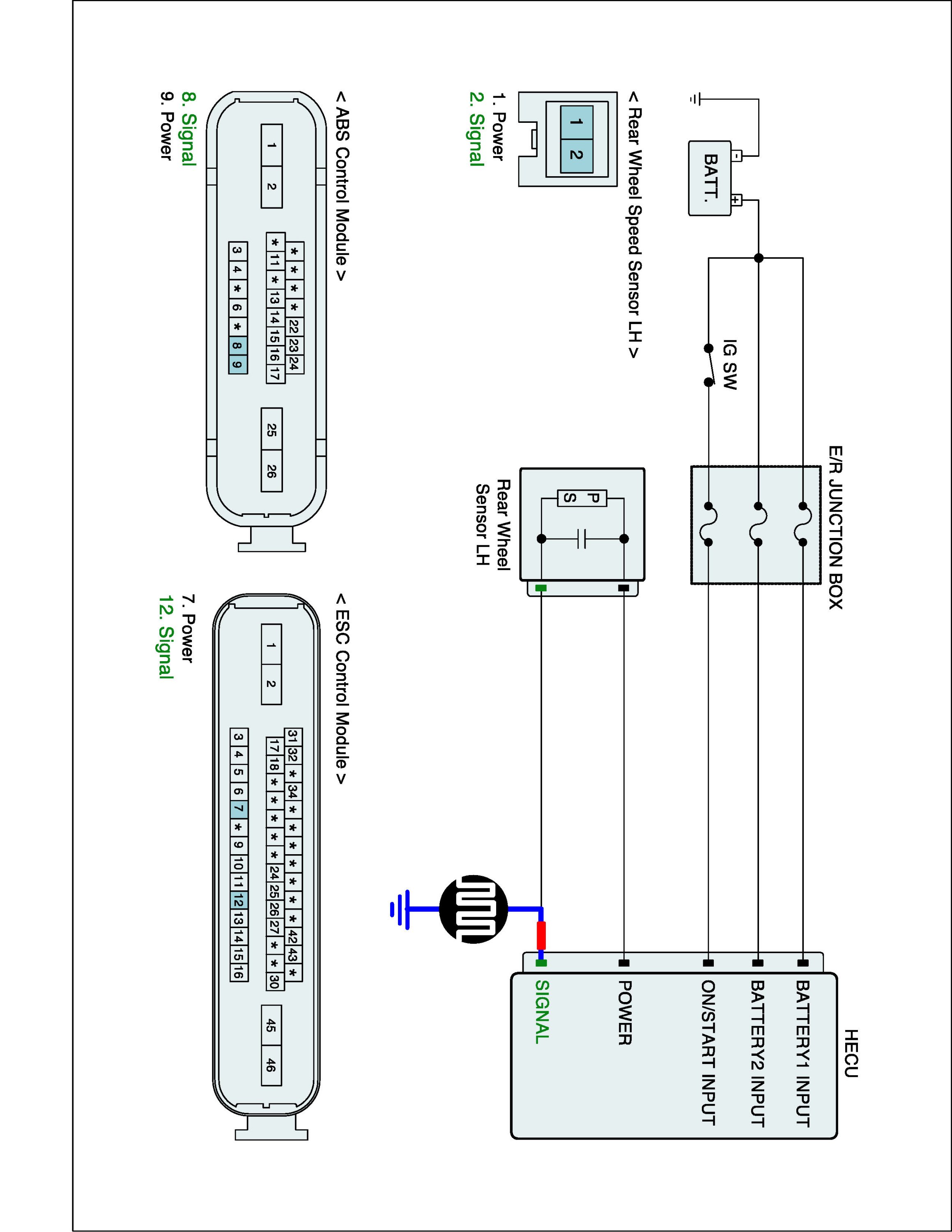

4. Measure waveform between wheel speed sensor signal terminal of the HECU harness connector and chassis ground with oscilloscope.

Specification : High : 1.18-1.68V, Low : 0.59-0.84V

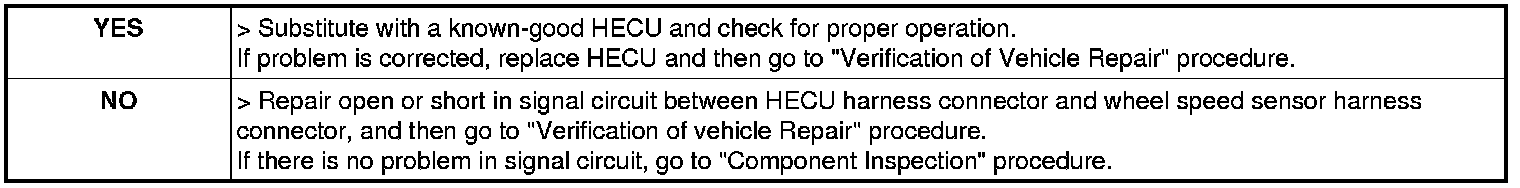

5. Is the measured waveform within specifications?
