Scantool Diagnostics

Monitor Scantool Data

1. Ignition "ON" & Engine "ON".
2. Connect scantool to Data Link Connector (DLC)
3. Start and drive vehicle in gear and maintain vehicle speed at or above 10 km/h. (6.2 mph)
4. Monitor the "WHEEL SPEED (FR)" parameter on the Scantool.

Specification : Compare with other parameters related to wheel speed sensor.
If it is the same as other parameters, it is in normal condition.

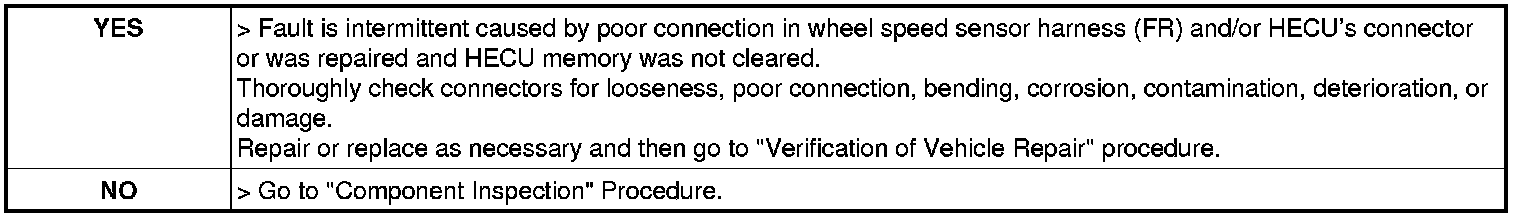

5. Is parameter displayed within specifications?
