General Information

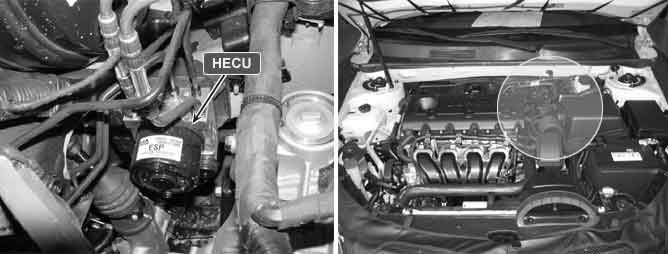

Component Location





General Description

The HECU monitors supply voltage of each sensor for normal ESC control.
If supply voltage is out of specified range ABS/ESC warning lamps are turned on and ABS/ESC controls are inhibited.

DTC Description

A failure is detected if the external sensor supply voltage is out of the specified range for more than the specified min. fault duration.

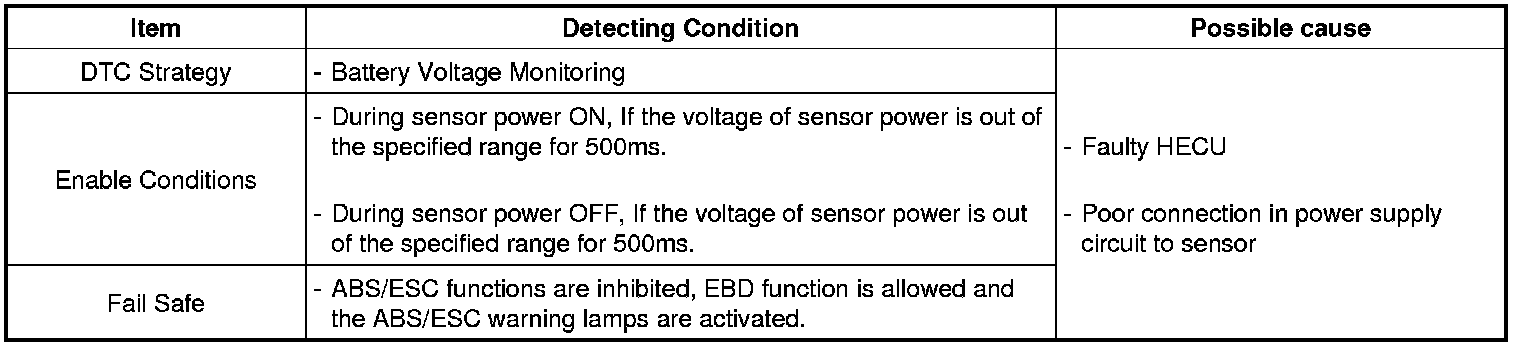

DTC Detecting Condition

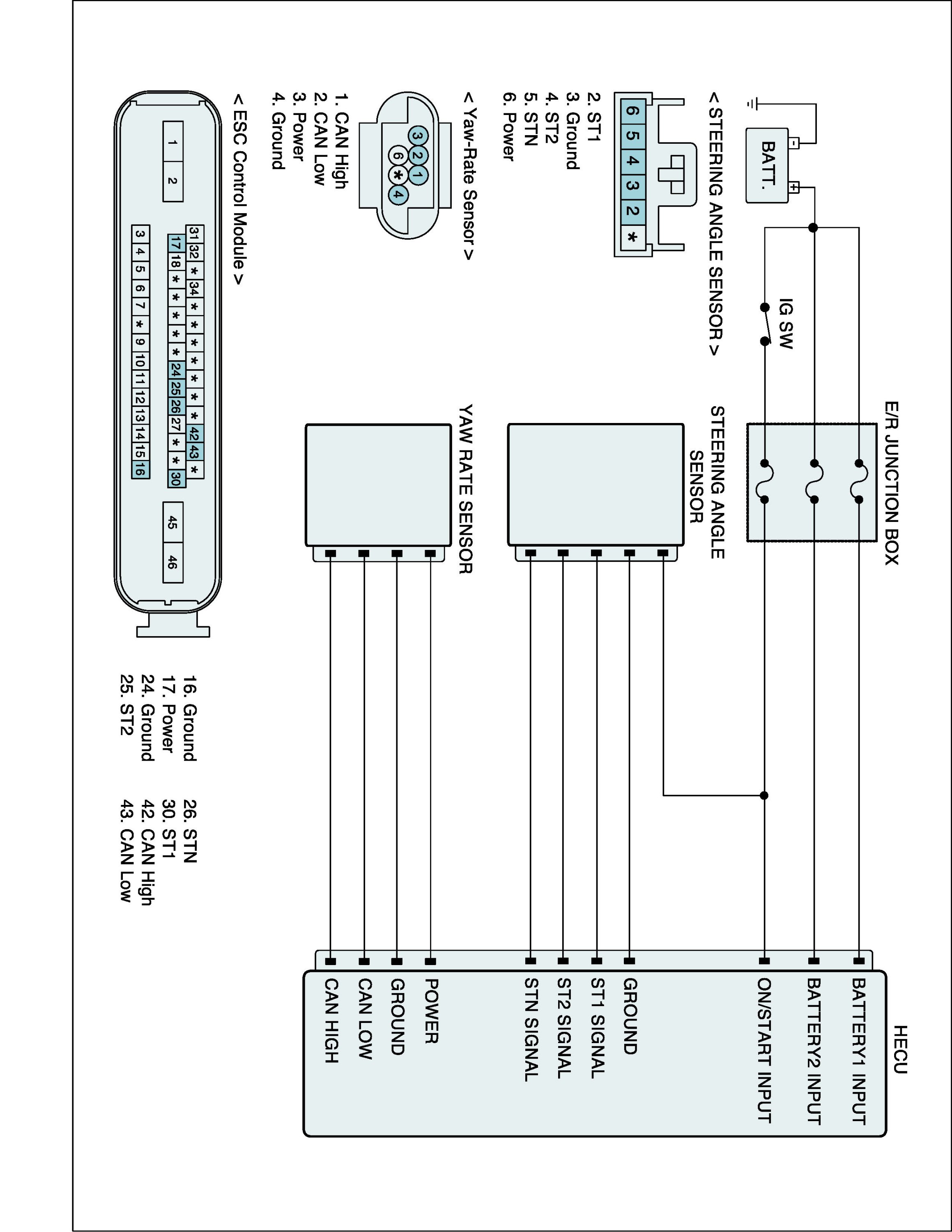

Diagnostic Circuit Diagram
