W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.
3. Has a problem been found?






Warning lamp Circuit Inspection

1. Ignition "OFF".
2. Disconnect SRSCM main harness connector.
3. Ignition "ON" & Engine "OFF".
4. Measure voltage between terminal "TELLTALE LAMP" of the SRSCM main harness connector and chassis ground.

Specification : Batt Voltage

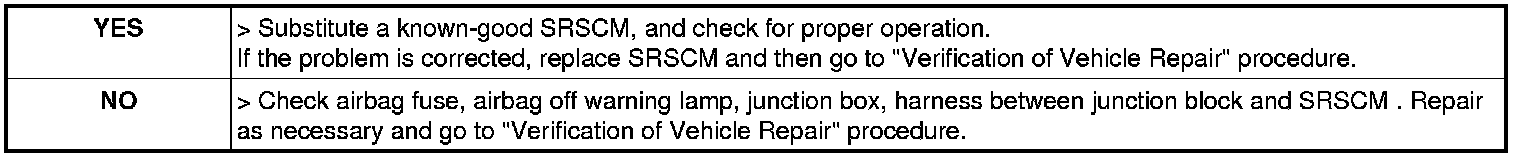

5. Is the measured voltage within specifications?
