General Information

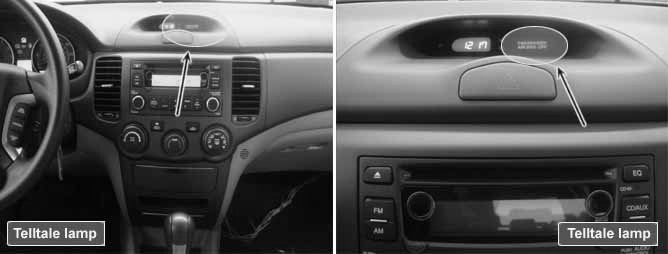

Component Location





General Description

PAD Switch (Passenger airbag deactivation Switch) is the device which prevents Passenger airbag from being deployed when the passenger seat is unoccupied as driver turning OFF PAD Switch.
When PAD Switch turned OFF, "PASSENGER SRS OFF" lamp on cluster turns ON.

DTC Description

The above DTCs are recorded when the defect of the Passenger airbag off warning lamp is detected in Passenger airbag off warning lamp circuit.

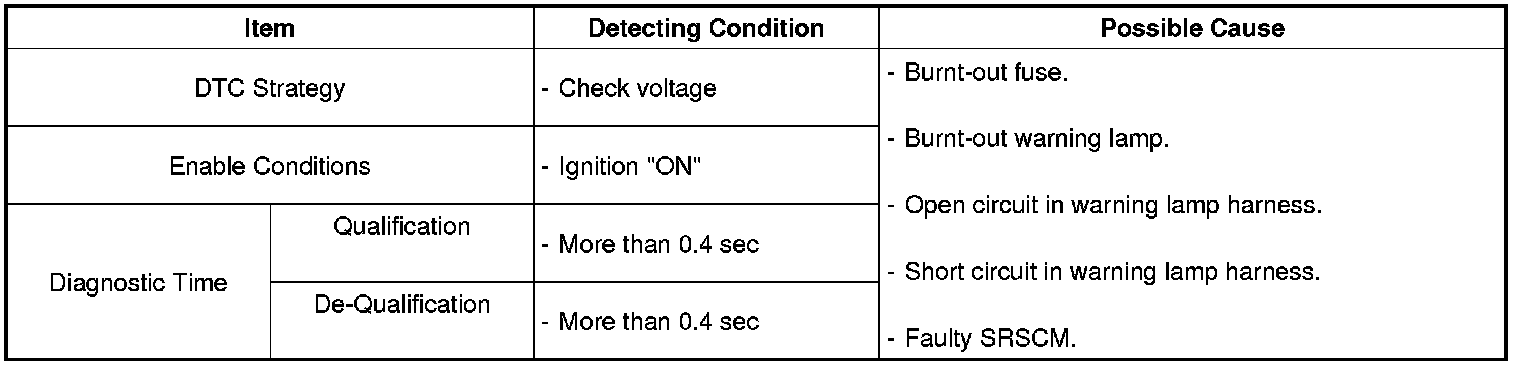

DTC Detecting Condition





Diagnostic Circuit Diagram
