General Information

Component Location





General Description

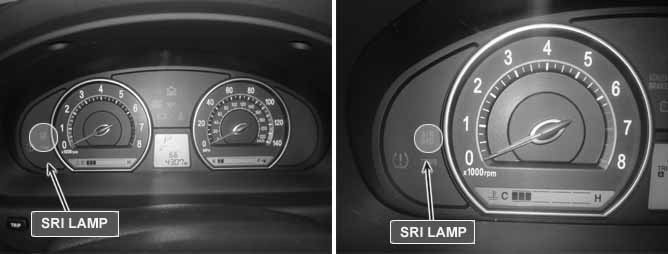

Air bag warning lamp is located at cluster
When key is in 'ignition on' position, SRSCM performs diagnosis of overall air bag system.If there's no fault, air bag.
Warning lamp in cluster flickers for a while and then goes out.
SRSCM measures voltage of out terminal of warning lamp to check if warning lamp is operated in accordance with signal SRSCM sends.

DTC Description

The SRSCM sets DTC 2503 if there is an open circuit or short to ground in air bag circuit harness.

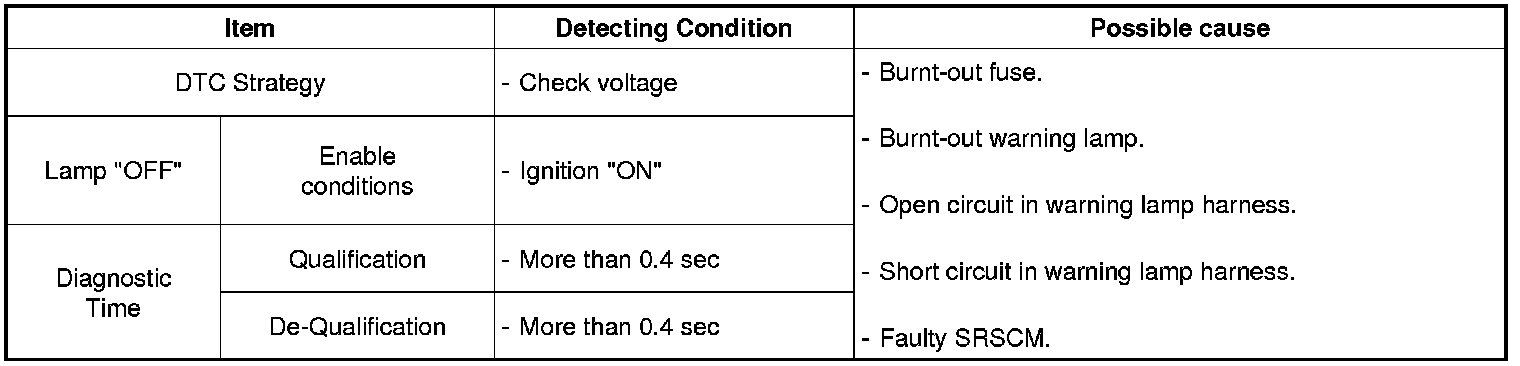

DTC Detecting Condition





Diagnostic Circuit Diagram
