Component Inspection

Component Inspection

1. Ignition "ON" & Engine "OFF" and Using a scan tool, clear the DTC.
2. Ignition "OFF".
3. Disconnect the battery (-) terminal cable from the battery and wait at least one minute.
4. Disconnect Seat-belt Buckle Switch connector.
5. Substitute the Seat-belt Buckle Switch and check for proper operation.

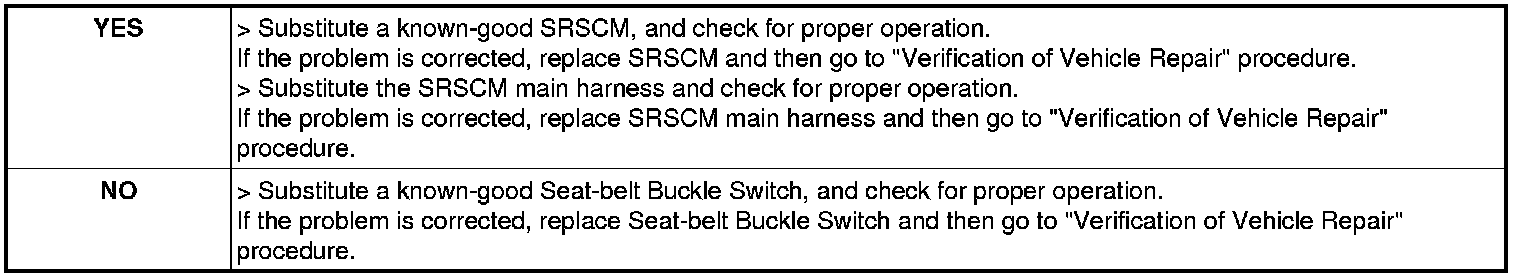

6. Is DTC present problem?
