General Information

Component Location





General Description

Side Impact Sensor (SIS) is located in both side of C pillar detects broad collision.
When SIS delivers collision signal to SRSCM, SRSCM checks if safing sensor located in SRSCM detects collusion. and if both SIS and safing sensor detects collision simultaneously, SRSCM operates side air bag.

DTC Description

The SRSCM sets DTC B1412 if there is any error in communication between RDSIS and SRSCM.

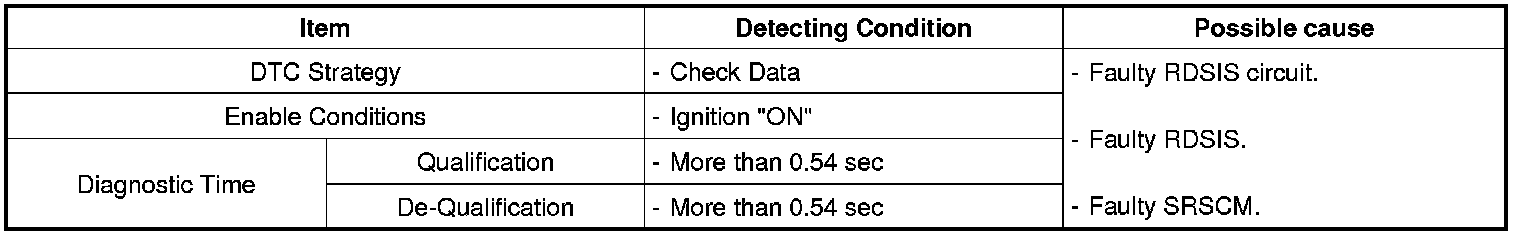

DTC Detecting Condition





Diagnostic Circuit Diagram
