Scantool Diagnostics

Monitor Scantool data

Actuation Test
1. Connect scantool with diagnostic connector.
2. Warm up the engine to normal engine temperature after engine starts.
3. Select and monitor "Direction Potentiometer" parameter on scantool.
4. Select and perform Actuation test Driver Mode Door-Face/Foot/Defrost in order.
5. Check that the value of all the parameters are changed when performing the actuation test.

Specification : Face-About below 10%, Foot : About 50%, Defrost : About 90%.

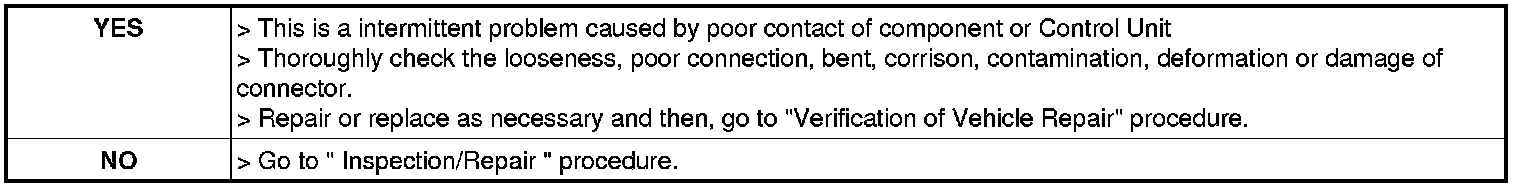

6. Are all the parameters changed when performing Actuation test?
