General Information

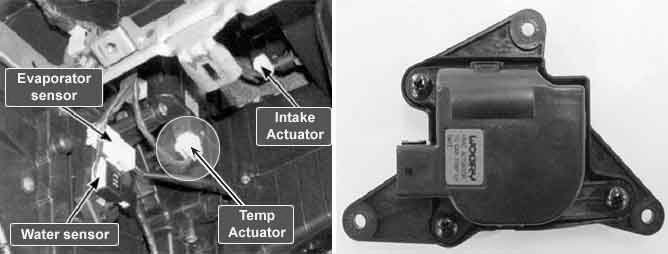

Componet Location





General Description

Temperature control actuator located at heater unit. It contains temp motor that changes temp door position and potentiometer that monitors position of temp door.Temperature control actuator regulates the temperature by the procedure as follows. Signal from control unit adjusts position of temp door by operating temp motor and then temperature will be regulated by the hot/cold air ratio decided by position of temp door. In operation, potentiometer delivers temp door position transformed into voltage value to A/C ECU.

DTC Description

Air conditioner Control Module sets DTC B1245 if Feedback signal of Driver Temperature Actuator has been detected open or below 0.1V for 0.3 second

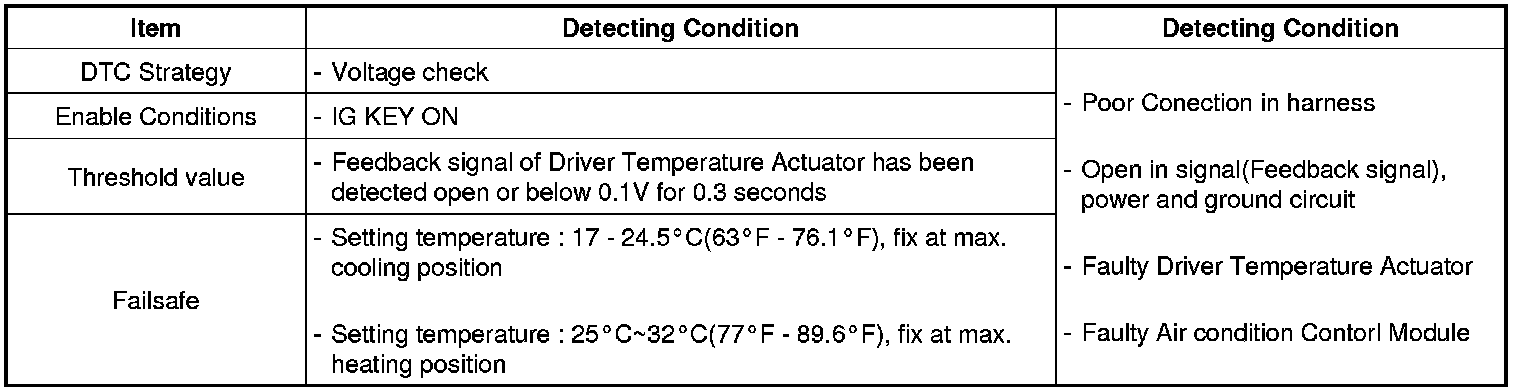

DTC Detecting Condition

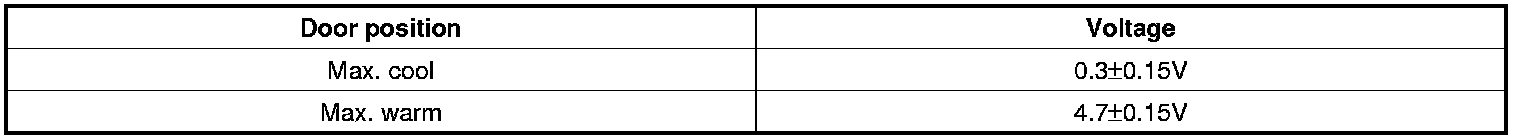

Specification

** Voltage value of Air Mix potentiometer as a function of temp door position.

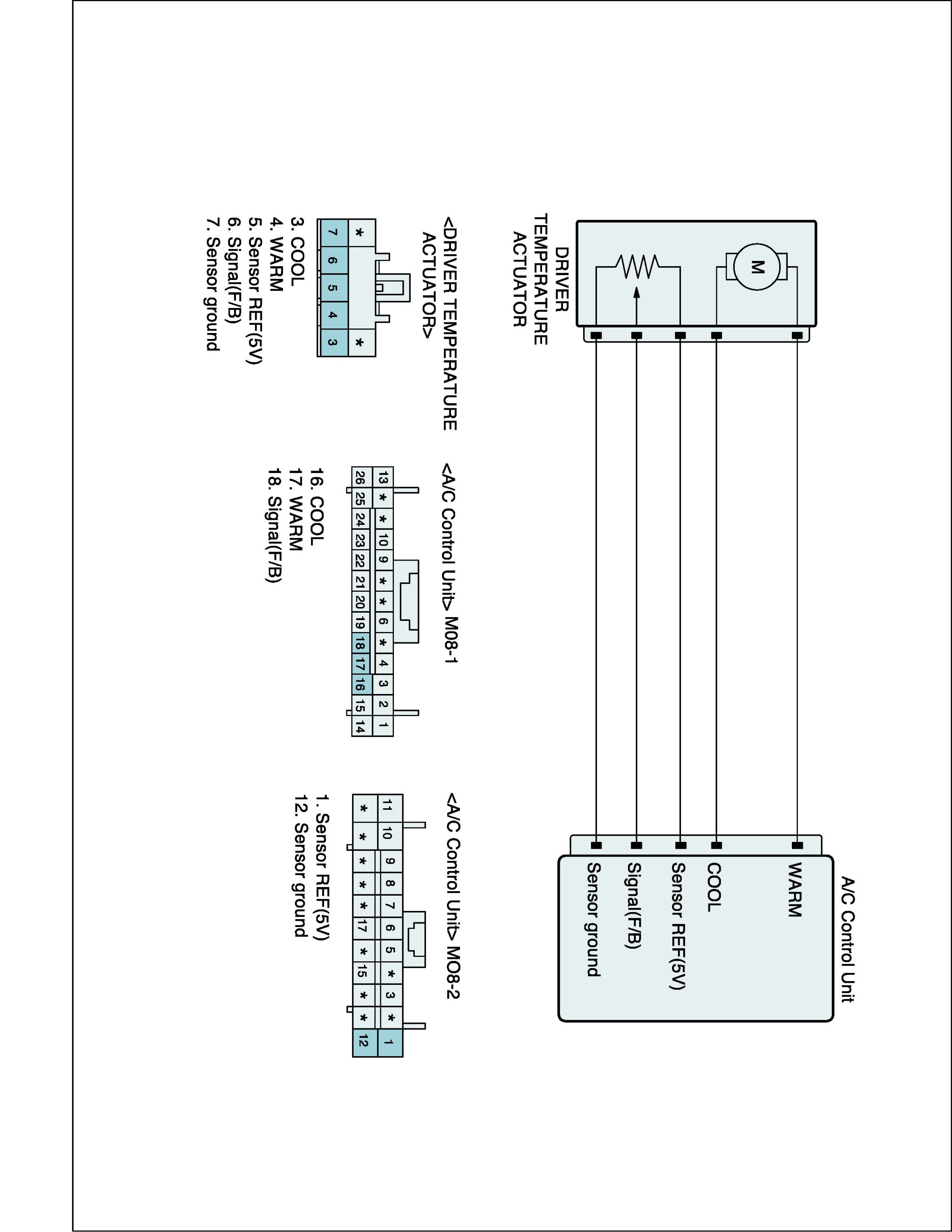

Diagnostic Circuit Diagram
