Scantool Diagnostics

Monitor Scantool data

1. Connect scantool with diagnostic connector.
2. Warm up the engine to normal engine temperature after engine starts.
3. Select and monitor "Evaporator sensor" parameter on scantool.




FIG.1) Parameter of "Evaporator Sensor" will be fixed at -2 °C (28.4 °F), if there is any fault in Evaporator Sensor.

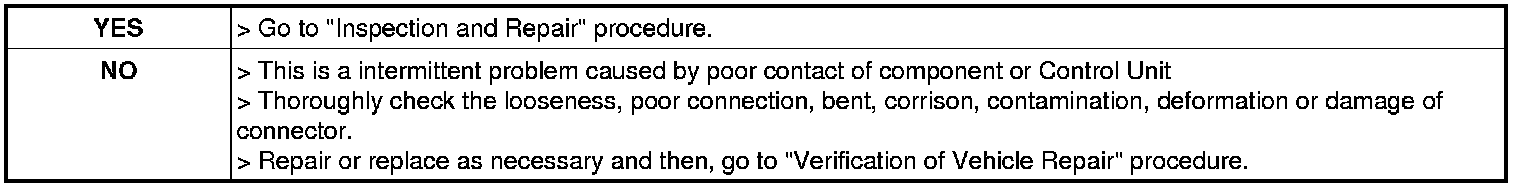

4. Is the Evaporator Sensor normal?
