Check Evaporator sensor
1. Ignition "OFF"
2. Disconnect Evaporator sensor and Connect A/C control unit main harness connector.
3. Measure resistance between Signal (+) terminal of Evaporator sensor harness connector and Sensor ground harness connector. (Component side)

Specification : Refer the specifications in Fig.1)





Fig.1)

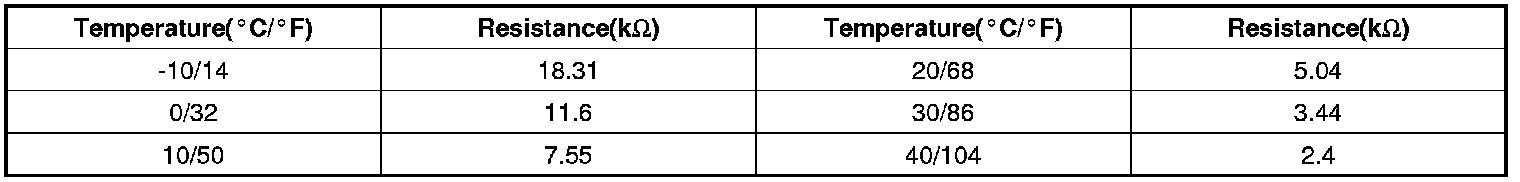

FIG.1) ** Specifications : Resistance value of Evaporator sensor as a function of temperature.
** The actual value may differ from it according to various engine condition.

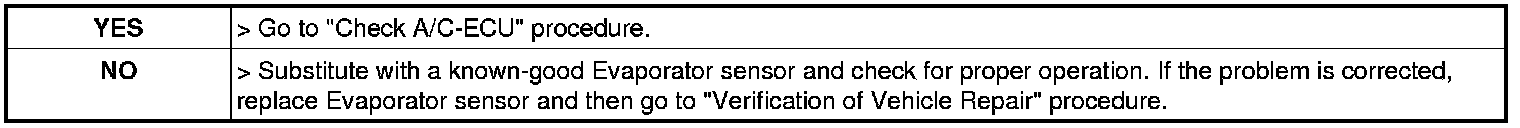

4. Is "resistance" display near the specified value?





Check A/C-ECU
1. Ignition "OFF"
2. Disconnect Evaporator sensor and Connect A/C control unit main harness connector.
3. Ignition "ON" (ENGINE "OFF").
4. Measure voltage between Signal (+) terminal of Evaporator sensor harness connector and chassis ground. (Component side)

Specification : approx. 5V

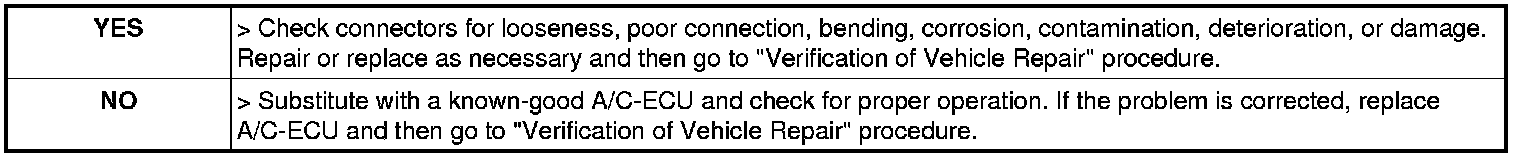

5. Is "voltage" display near the specified value?
