General Information

Componet Location





General Description

The ambient temperature sensor located at the center stay of the condenser detects ambient air temperature. It is a negative type thermistor whose resistance is inversely proportional to temperature. Its output is used for sensor fail-safe, temperature regulation door lock, blower motor level control, mix mode control and in-car humidity control.

DTC Description

Air conditioner Control Module sets DTC B1238 if Ambient sensor has been detected over 4.9V for 0.3 second.

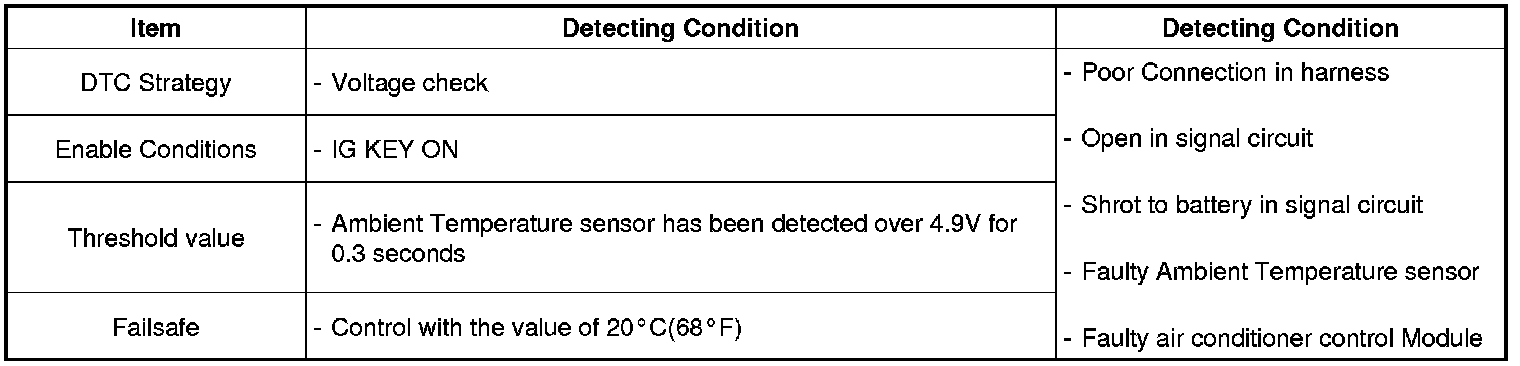

DTC Detecting Condition





Specification

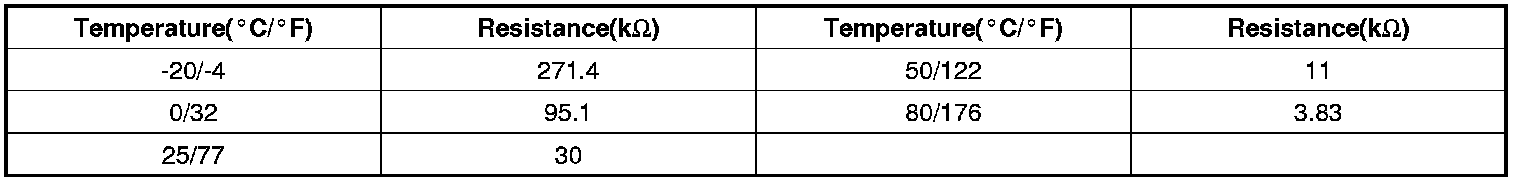

** Resistance value of ambient temp.sensor as a function of temperature.






Diagnostic Circuit Diagram
