Scantool Diagnostics

Monitor Scantool data

1. Connect scantool with diagnostic connector.
2. Warm up the engine to normal engine temperature after engine starts.
3. Select and monitor "In-car temperature sensor" parameter.




FIG.1) Parameter of "INCAR TEMP.SENSOR" will be fixed at 25 °C (77 °F), if there is any fault in INCAR SENSOR.

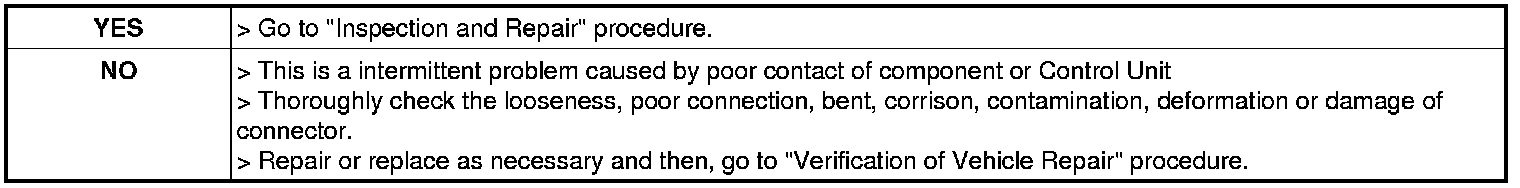

4. Is the Incar temperature sensor normal?
