Scantool Diagnostics

Monitor Scantool data

Check Actuation Test
1. Connect scantool with diagnostic connector.
2. Warm up the engine to normal temperature after engine start
3. Select "Intake Potentiometer" parameter on the current data with scantool
4. Perform Actuation Test for Air Inlet Mode Selection-Regulation/Fresh in order.
5. With performing Actuation test, check that the value of each position sensors are changing.

Specification : Recirculation : About 90%, Fresh : About 10%.

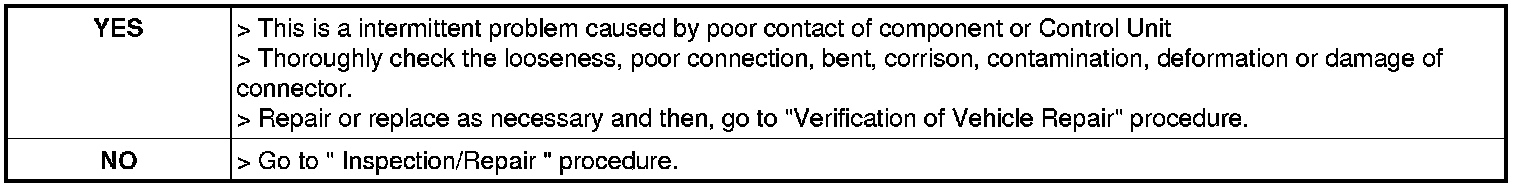

6. Are the value of each position sensors changed when performing actuation test?
