Scantool Diagnostics

Scantool Diagnostics

1. Connect scantool with diagnostic connector.
2. Warm up the engine to normal engine temperature after engine starts.
3. Select and monitor "Water temperature sensor" parameter.




FIG.1) Parameter of "WATER TEMP.SENSOR" will be fixed at -2 °C (28.4 °F), if there is any fault in INCAR SENSOR.

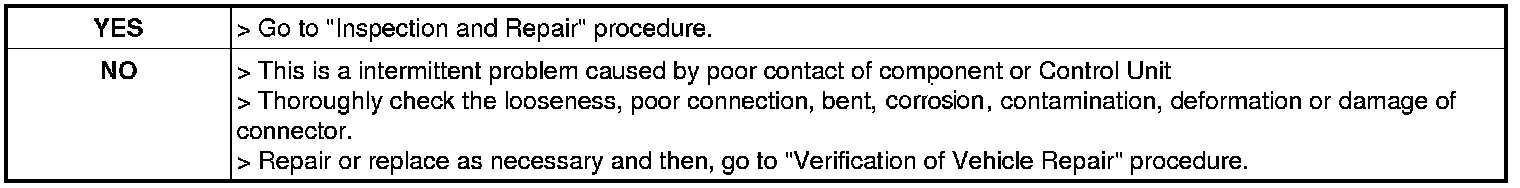

4. Is the Incar temperature sensor normal?
