Repair Procedures

REMOVAL

NOTE:
Do not spill brake fluid on the vehicle it may damage the paint, if brake fluid does contact the paint, wash it off immediately with water.

1. Remove the brake fluid from the clutch master cylinder reservoir with a syringe.

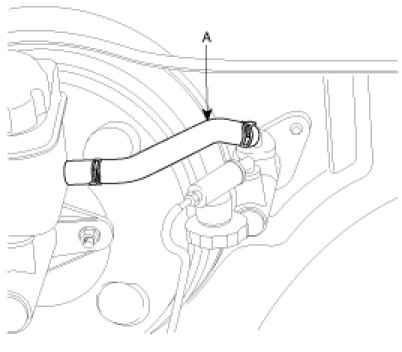

2. Clamp the clutch master cylinder hose(A).




3. Disconnect the hose from the cylinder by releasing the clutch master cylinder clamp.

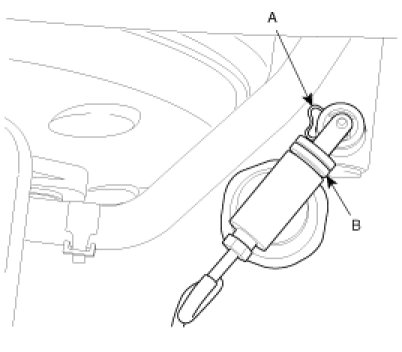

4. Remove the clip(A) and disconnect the clutch tube(B).




5. Remove the pin and washer which connect the clutch pedal with the clutch master cylinder.
6. After loosening the clutch master cylinder assembly mounting bolts under the driver's seat, remove the clutch master cylinder. It can be helpful to do this step after removing the clutch pedal mounting bracket.

INSTALLATION

Installation is in the reverse order of removal.
After installation, bleed the clutch hydraulic system.
